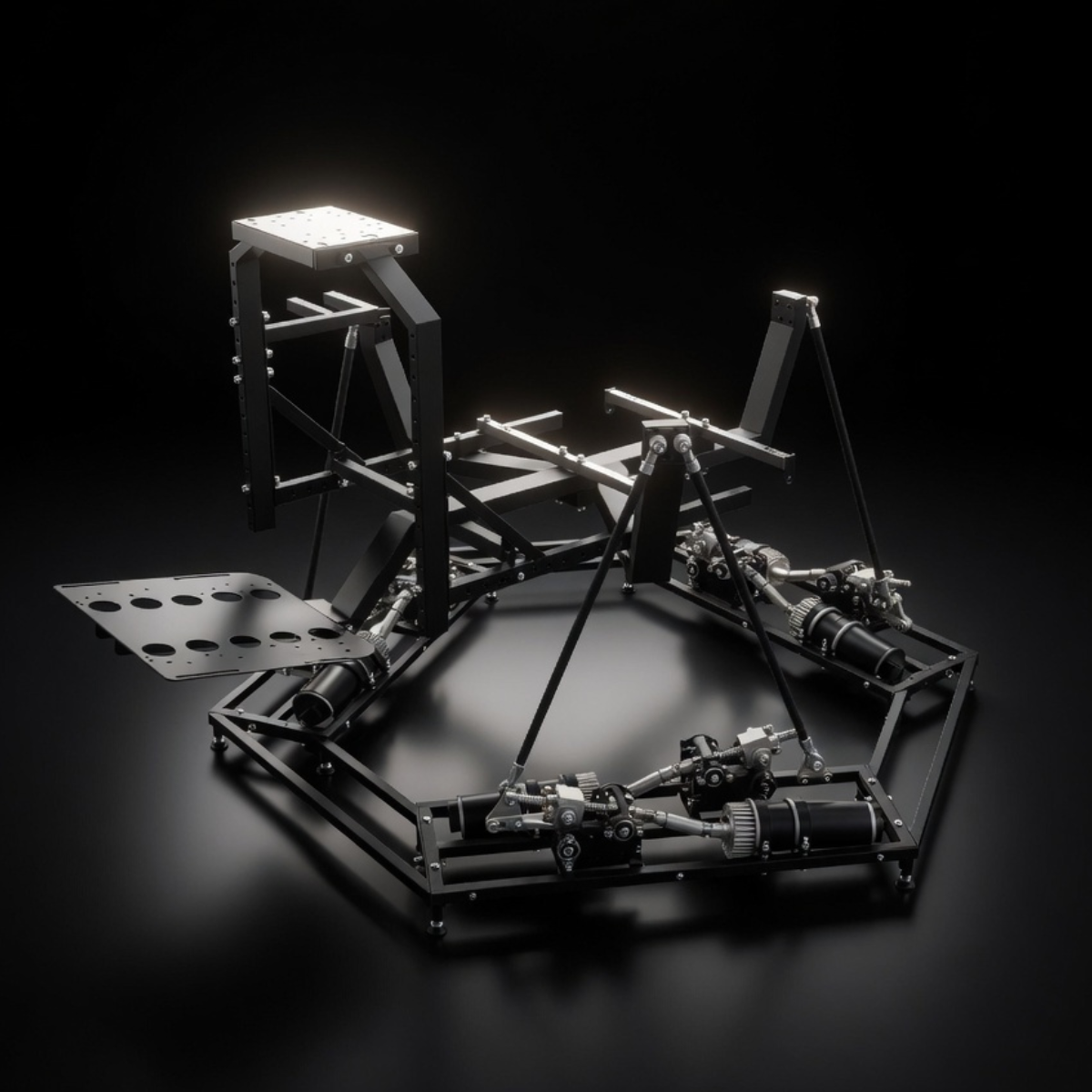

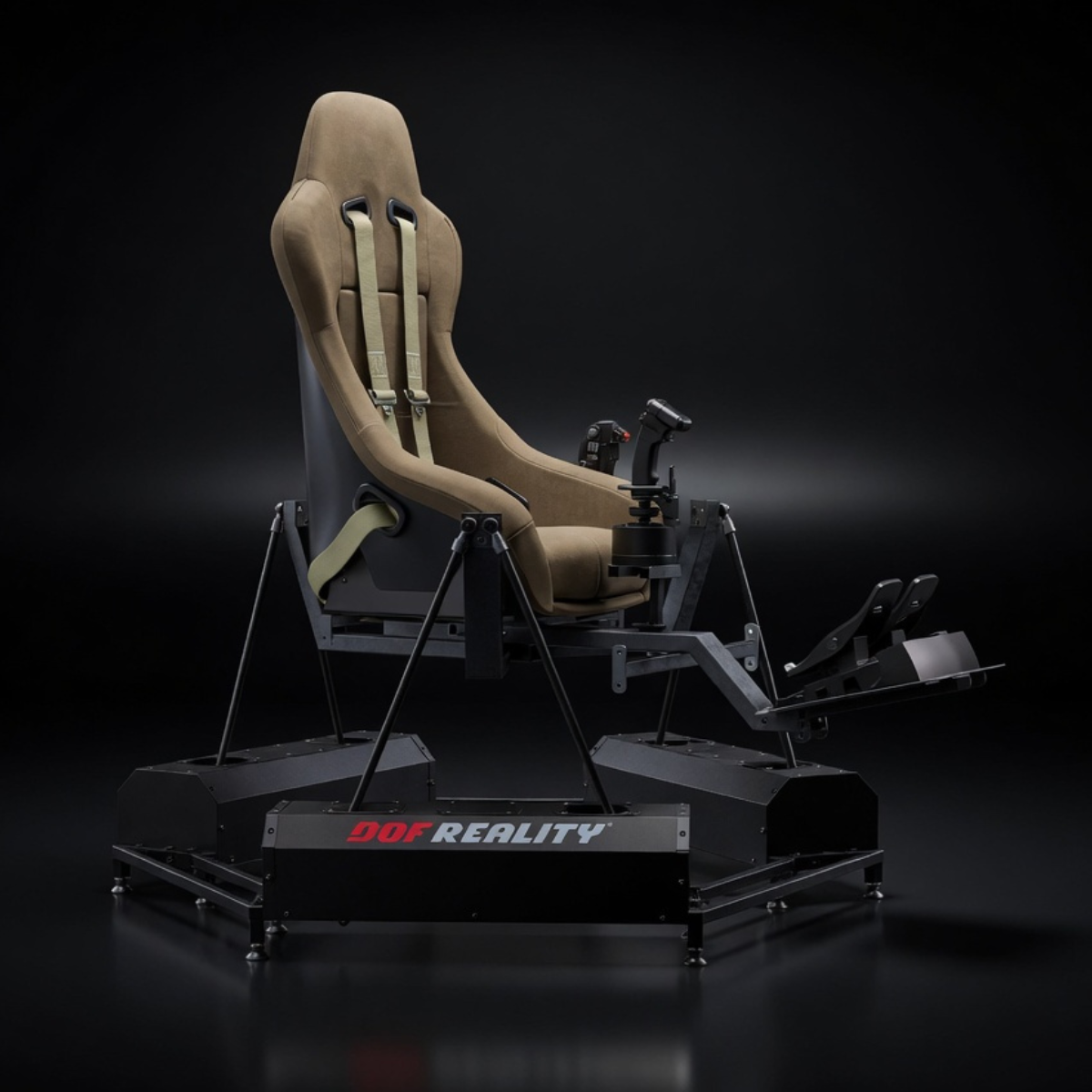

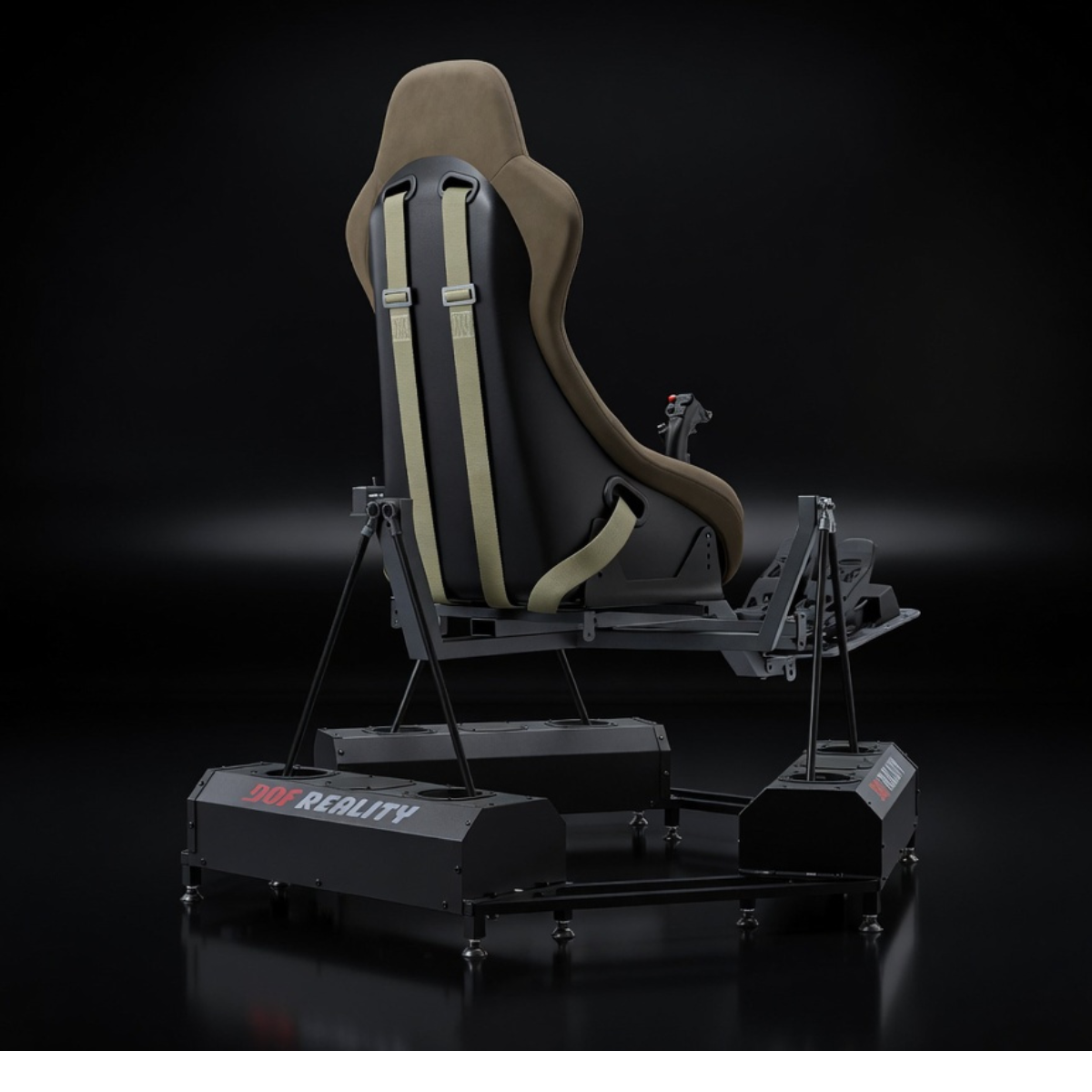

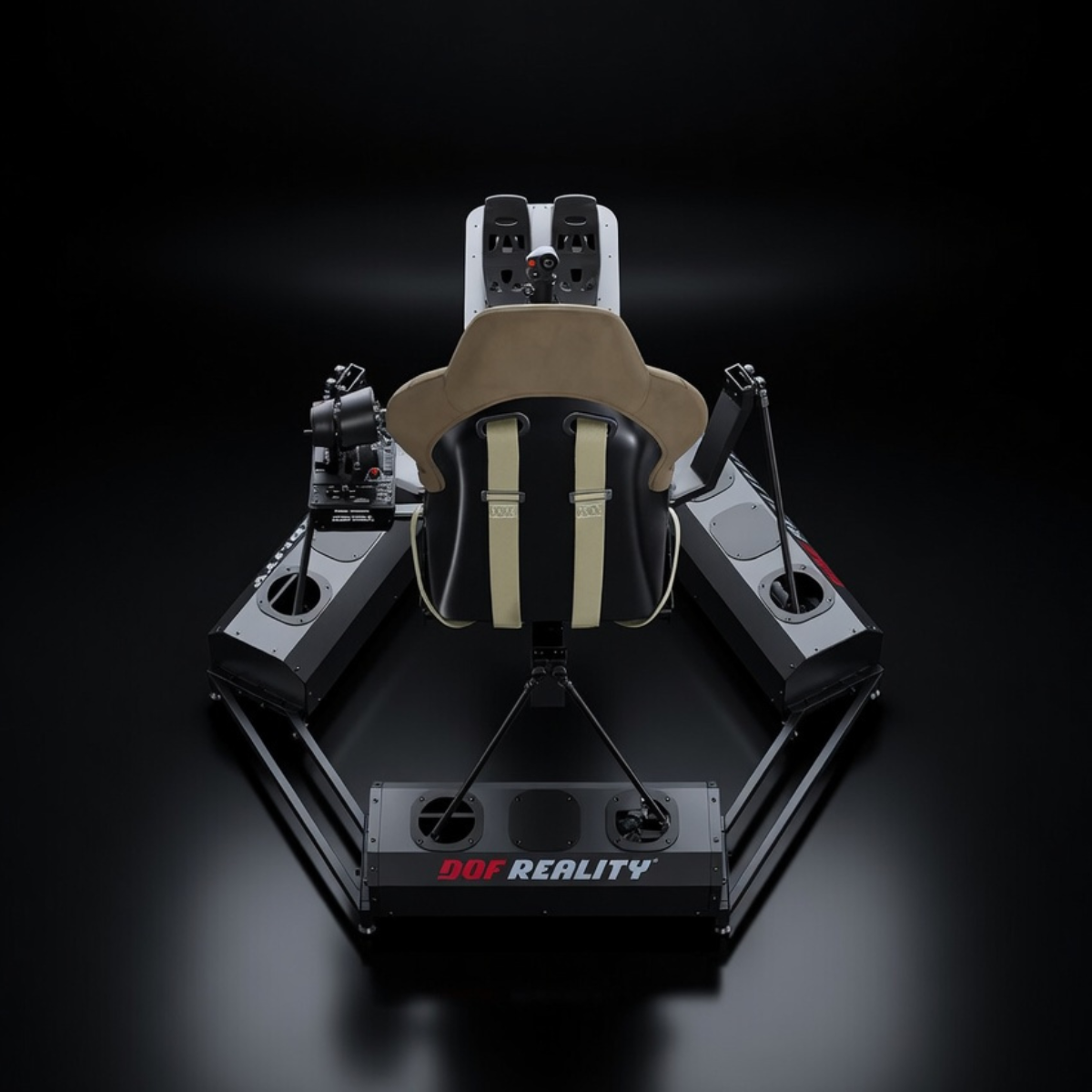

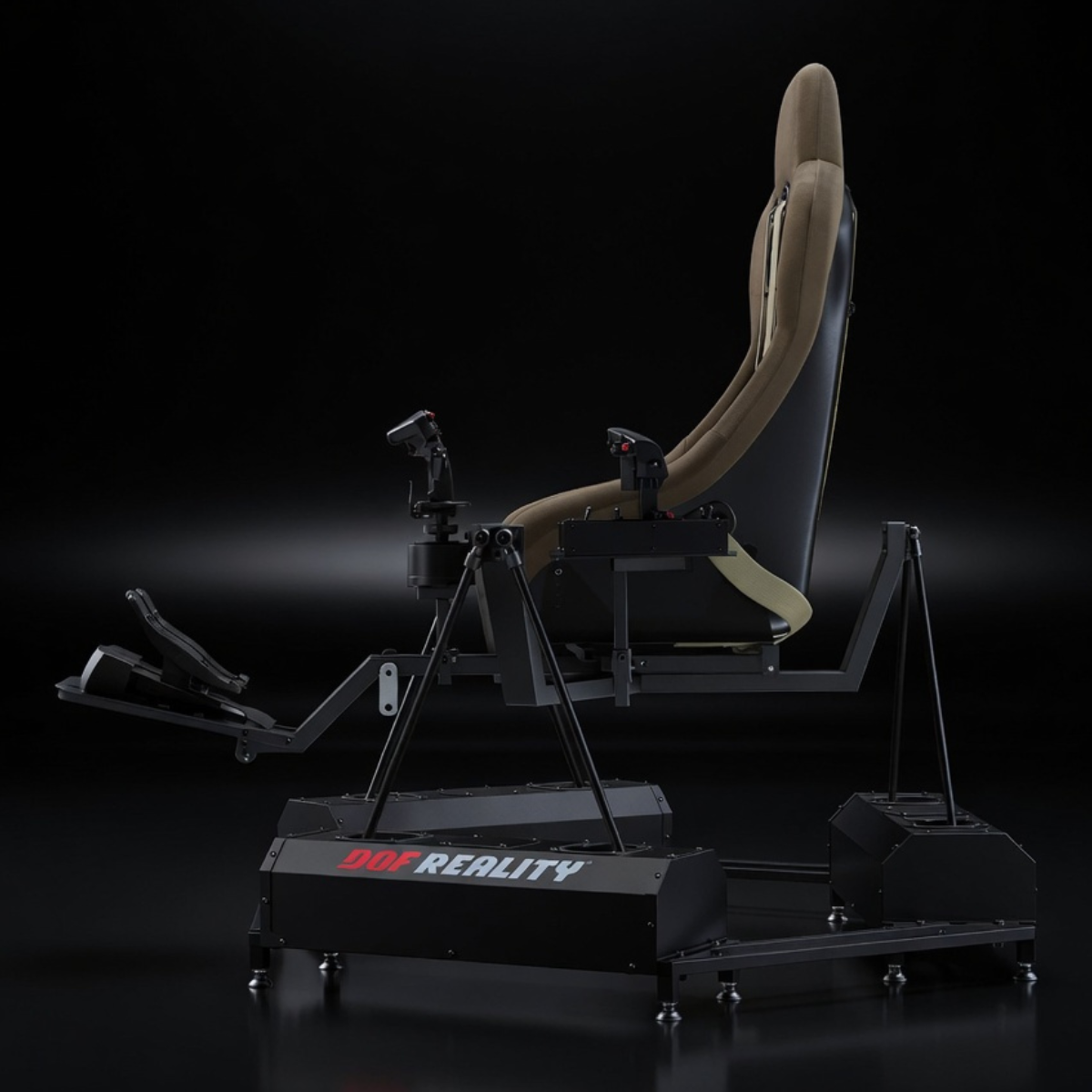

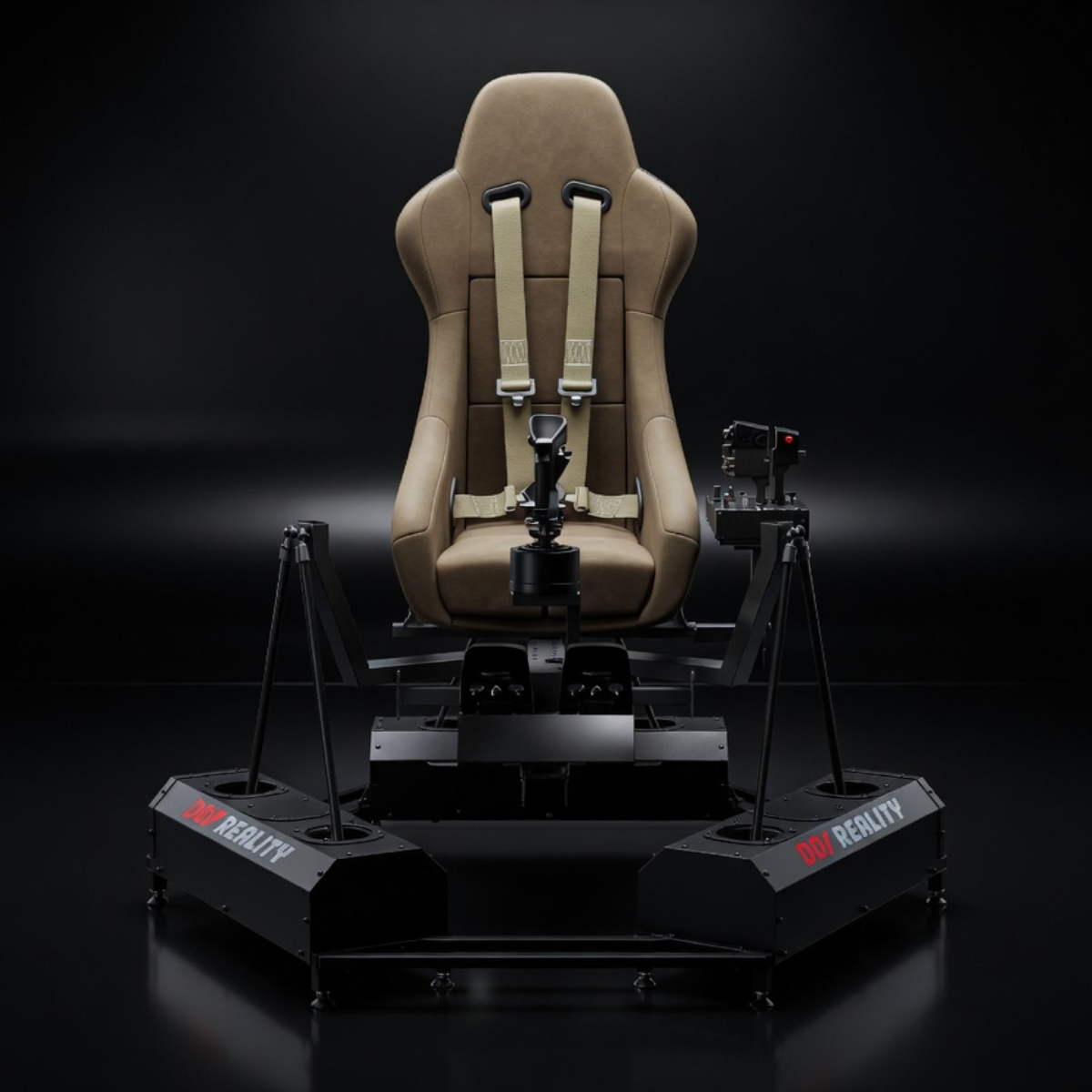

DOF Reality HERO 6-Axis Helicopter Motion Simulator Platform - H6

DOF Reality HERO 6-Axis Helicopter Motion Simulator Platform - H6 - Image 3

DOF Reality HERO 6-Axis Helicopter Motion Simulator Platform - H6 - Image 4

DOF Reality HERO 6-Axis Helicopter Motion Simulator Platform – H6

Name: DOF Reality HERO 6-Axis Helicopter Motion Simulator Platform - H6 - towertotower.co.uk
SKU: DOF-H6rH-HERO
Price: 3743.43 GBP
Availability: InStock

Original price was: £7,486.85.Current price is: £3,743.43.

Add to compare

Add to wishlist

SKU: DOF-H6rH-HERO Tags: 6-Axis Helicopter Simulators, Helicopter Motion Simulators, Motion Simulator Platforms

Description

The DOF Reality HERO H6 is the most advanced 6-axis full-motion helicopter simulator platform built for enthusiasts, flight schools, and professional training environments. It captures the full dynamics of real-world helicopter flight with unmatched realism, responsiveness, and immersion.

Powered by gearbox-enhanced motors, the H6 provides ultra-smooth, low-speed motion essential for replicating sensitive helicopter maneuvers like hover drift, yaw control, cyclic adjustments, tail rotor effects, and ground resonance. It features true 6 Degrees of Freedom (heave, roll, pitch, yaw, sway, and surge) with independent front and rear roll centers, enabling precise modeling of climbs, descents, turbulence, drift, crosswind response, and complex body yaw behavior.

The full-rig motion system moves the entire cockpit — cyclic, collective, pedals, throttle, joystick, and monitor — in unison with the seat, simulating authentic g-forces through muscle tension and body pressure points. Integrated with Sim Racing Studio software, the platform processes real-time telemetry to generate immersive physical feedback, including rotor vibrations, landing impact, turbulence, crash simulation, and engine torque effects.

Built by DOF Reality — pioneers in motion simulation since 2014 — the HERO H6 brings professional-grade helicopter realism within reach for serious sim pilots, training centers, and VR enthusiasts while maintaining full compatibility with fixed-wing flight and racing applications.

Why It Stands Out

Helicopter-Optimized 6DOF Motion

True 6DOF with independent roll centers and ultra-smooth gearbox motors deliver precise hover drift, yaw control, cyclic/collective response, rotor torque, and turbulence realism.

Full-Rig Cockpit Movement

The entire cockpit (cyclic, collective, pedals, throttle, joystick, monitor, and seat) moves in unison for authentic g-force feedback through muscle pressure and body cues.

Ultra-Smooth Low-Speed Precision

Gearbox-enhanced motors excel at delicate, low-speed helicopter maneuvers while still delivering powerful performance for fixed-wing and racing use.

SRS Telemetry Integration

Sim Racing Studio converts real-time helicopter data into vivid physical cues: rotor vibrations, landing impact, turbulence, ground resonance, and engine torque.

Professional & Versatile Build

Robust construction supports up to 330 lbs and works seamlessly for helicopter training, fixed-wing flight, and racing on the same platform.

What’s Included

Ready-to-Play Package

Rigid metal motor covers
Metal rig for normal & F1 pose
Mounts for seat or sliding rails
Integrated power drive motors with gearbox enhancement
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (cyclic, collective, pedals, yoke, throttle, etc.). Supports all major brands and types.

Specifications

Degrees of Freedom	6 DOF (Pitch, Roll, Yaw, Surge, Sway, Heave)
Full Platform Motion	Yes
Range of Motion	17°
Speed	50 cm/s (86°/s)
Torque	28 N/m
Acceleration	0.5G all directions
Power Consumption	1500 Watt (peak)
Box Weight (Size)	1) 58.95kg (100 x 95 x 35cm) 2) 23.8kg (60 x 40 x 40cm)
Floor Footprint	4×5 ft, 2 ft H (120×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	330 lbs / 150 kg
Warranty	Full 1 year (extensions available)

Frequently Asked Questions

What makes the DOF Reality HERO H6 the best 6DOF helicopter motion simulator platform?

True 6DOF with independent roll centers, ultra-smooth gearbox motion, and full-rig design replicate real helicopter dynamics — hover drift, yaw control, rotor torque, and turbulence — better than any lower-DOF or racing-focused system.

Which parts of the helicopter cockpit move on the HERO H6?

The entire rig — cyclic, collective, pedals, throttle, joystick, monitor, and seat — moves in unison for authentic, full-body immersion and g-force simulation.

Which helicopter and flight simulators are compatible with the HERO H6?

Powered by Sim Racing Studio (SRS), it supports major titles like DCS World, Microsoft Flight Simulator, X-Plane, and more via telemetry for real-time rotor effects, turbulence, and landing feedback.

Can the HERO H6 be used for fixed-wing flight or racing as well as helicopter simulation?

Yes — while optimized for helicopter realism, its true 6DOF handles fixed-wing and racing seamlessly without hardware changes.

Is the HERO H6 suitable for professional helicopter training or flight schools?

Yes — its precision low-speed control, smooth gearboxes, and robust build make it excellent for procedural training and muscle memory (confirm local certification requirements).

How much space is required for the DOF Reality HERO H6 helicopter platform?

Approximately 120 × 150 cm (4 × 5 ft) footprint with 60 cm height; allow extra clearance for full 6DOF travel and safe entry/exit.

Does the HERO H6 support VR for realistic helicopter simulation?

Absolutely — full 6DOF motion enhances VR immersion dramatically; mount tracking sensors to the moving rig or use software compensation for smooth, nausea-free flights.

What warranty and support come with the HERO H6?

Full 1-year manufacturer warranty with optional extension; 24/7 global support from DOF Reality for setup, calibration, and troubleshooting.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the 6 DOF platform, software setup, tuning, VR motion compensation, troubleshooting, and technical specifications.

DOF Reality HERO H6 6-axis full-motion helicopter simulator platform

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your H6 platform.

Download Full Official Manual (PDF)
