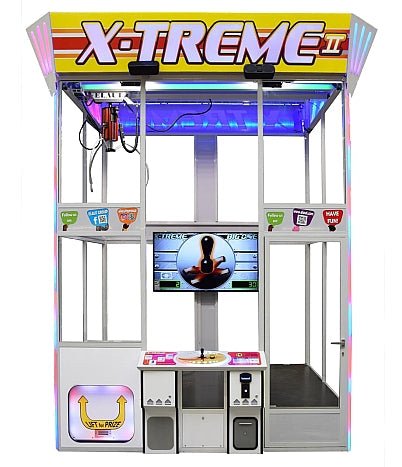

Elaut Big One X-Treme II

Twelve feet of claw machine. A camera mounted on the claw feeds a live monitor view as the player steers from floor level.

Overview

The Big One X-treme II is a single-player claw machine by ELAUT standing over 12 feet tall — the tallest claw machine ELAUT manufactures, and reportedly the tallest production arcade crane machine available. The cabinet is built to hold and deliver oversized prizes that standard-footprint crane machines cannot accommodate, and its full-height RGB LED array makes the structure visible from the far end of any game floor. The unit ships crated and supports coin, bill acceptor, swipe card, and cashless payment configurations.

Key Features

144.66-Inch Cabinet Height

At 144.66 inches tall, the Big One X-treme II stands above every other production crane machine on the floor. The prize field is elevated to a height that reads as a visual reference point from across the room. Cabinet width is 118.45 inches and depth is 85.24 inches.

Claw Vision Monitor System

A camera mounted on the claw head transmits a live feed to the Claw Vision monitor on the cabinet. As the player steers, the monitor shows the claw’s actual position relative to the target prize from the claw’s own perspective — a view not available on conventional crane machines where the player estimates position entirely from floor level.

Oversized Prize Claw

The claw mechanism is scaled to the cabinet’s interior dimensions, designed to grip large plush and novelty prizes that would not fit within the play field or claw span of a standard crane machine. Prize items sized beyond conventional claw capacity are a stocking option with this unit.

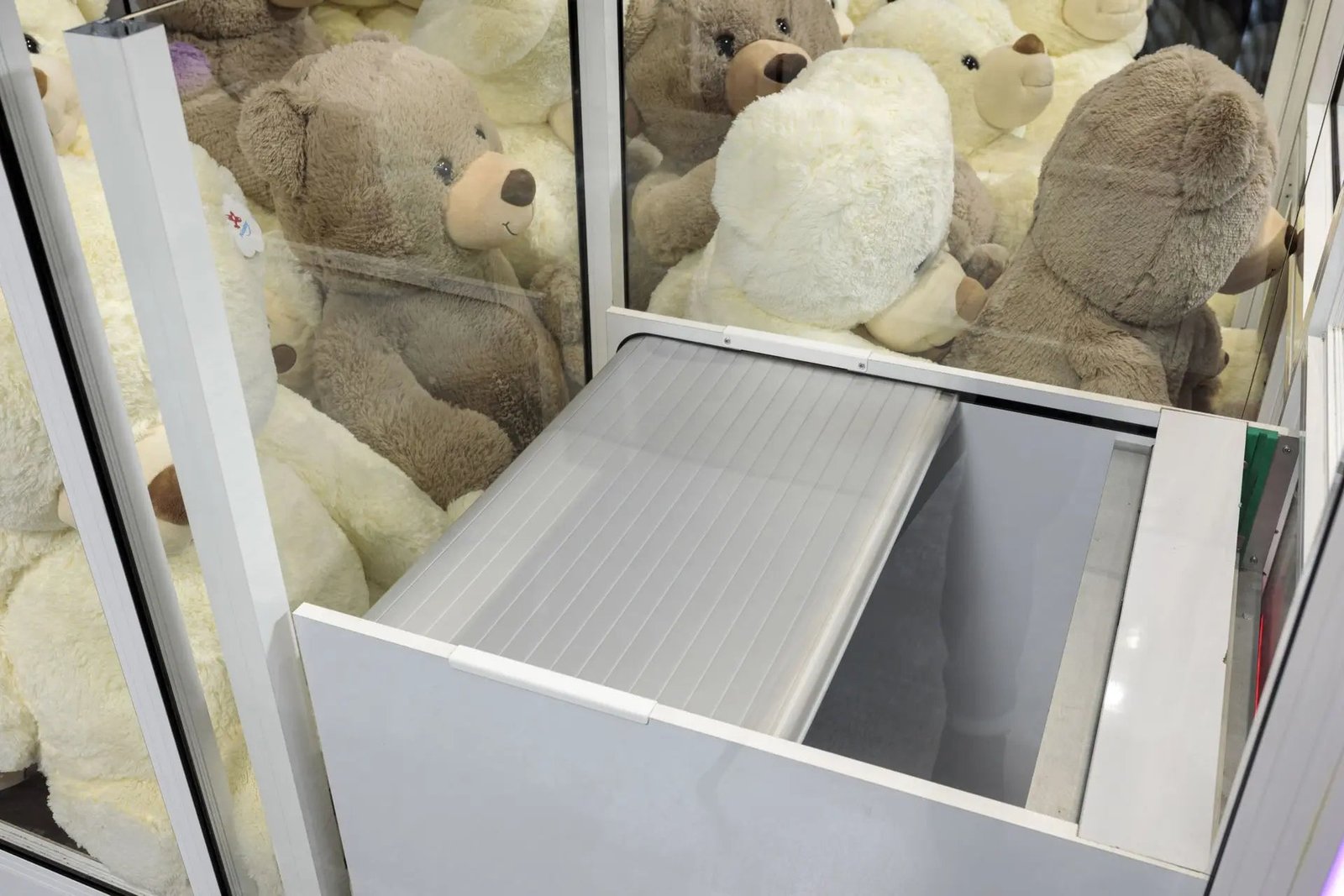

Garage Door-Style Prize Chute

The prize delivery opening uses a larger garage door-style chute rather than a standard drop slot. The wider opening guides oversized prizes through the full delivery path without lodging partway through, which is a practical failure point on conventional chutes when large plush items are stocked.

Programmable LED Attract Mode

RGB LED lighting runs the full exterior height of the cabinet. Attract mode patterns are programmable, cycling dynamic sequences across the entire 12-foot lit surface between plays. The light output is visible from the opposite end of a standard arcade floor.

ConNext Network Integration

The Big One X-treme II includes ELAUT’s ConNext technology, giving operators the same networked management interface used across other ELAUT E-Claw cranes. Settings, collections, and operational data accessible through ConNext on other ELAUT units carry over to this machine.

How It Plays

The player steers the oversized claw across the prize field using the joystick while watching the Claw Vision monitor — a live camera feed from the claw’s own position above the prizes, showing the approach angle that floor-level viewing cannot provide. When the drop button is pressed, the claw descends the full height of the 12-foot cabinet toward a prize that can be the size of a large stuffed animal. Bystanders across the arcade see the full lit descent along the cabinet’s height, and a successful grab delivers the prize through the garage door chute at player level.

Specifications

Why Operators Love It

Wide-Voltage Power Supply

The 100–245V input range covers regional power standards without step-down transformers or electrical modifications at the venue.

750W Draw on a 12-Foot Cabinet

At 750 watts, the Big One X-treme II draws less power than many standard-size redemption machines at its scale. The full LED array and drive system run on a single circuit at that draw.

ConNext Fleet Management

Operators already running ELAUT E-Claw cranes on ConNext can bring the Big One X-treme II into the same network. Settings, collections data, and operational reporting use the same interface as the rest of the ELAUT fleet — no separate management system required for this unit.

Known Floor Rectangle Against Vertical Scale

The cabinet occupies a fixed 118.45 x 85.24-inch floor footprint that operators can plan against when allocating space. All visual mass is vertical, so the floor area commitment is a defined rectangle while the height provides room presence.

Crated Shipping Configuration

The unit ships fully crated at 2,535 lbs in a 114.18 x 45.75 x 86.60-inch crate. The crated format protects the cabinet through freight handling and gives receiving staff a known crate envelope to plan dock access and unloading equipment against.

Ideal Placement

Best suited for venues with ceiling clearance above 12 feet: large-format arcades, family entertainment centers, amusement parks, shopping mall entertainment zones, and indoor amusement facilities. Operators should confirm ceiling height before placement to ensure the full cabinet envelope clears without obstruction.

Shipping & Setup

We offer flexible freight delivery options, including curbside and lift-gate services. Shipping costs and timing are calculated at checkout based on your location and requirements.

Warranty & Support

Your purchase includes a standard manufacturer warranty and access to technical support to ensure long-term performance and uptime.
