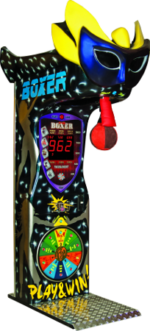

Kalkomat Boxer Mask

A 104-inch cabinet. The mask-shaped target anchors the strike zone. Halogen lights fire the instant the punch lands.

Overview

The Kalkomat Boxer Mask is a full-height strength-testing punching machine built for commercial arcade, FEC, and route deployment. Players strike a mask-shaped target and the machine scores the hit with onboard electronics and a flashing halogen light sequence. The cabinet ships with an electronic coin acceptor installed and is designed around a modular upgrade system that adds bill validation, card payment, ticket dispensing, capsule dispensing, and Wi-Fi network connectivity after initial installation.

Key Features

Flashing Halogen Lights Mode

When a player lands a punch, the cabinet’s halogen lights fire in a flashing sequence triggered by the hit event itself. The burst is correlated directly to the strike, producing a visible reaction that reads from across the arcade floor.

Unbreakable Record Setting with Manual Reset

High scores are locked against accidental overwrite — the machine maintains an unbreakable record that clears only through a manual operator reset. Location managers can wipe the board for weekly competitions, seasonal events, or venue changeovers without a service call.

Configurable Bonus Credit Awards

The machine awards bonus credits when a player achieves a high score, a round number, or a triple-number score. Operators set these thresholds in the settings menu to match the promotional structure of each location.

Multi-Currency Payment Hardware

This Kalkomat unit does not include standard payment methods, you can easily customize it to fit your needs. Upgrade your build with optional coin acceptance, bill validators, or credit card and card reader options.

Capsule Dispenser

The Boxer Mask can be fitted with a capsule dispenser configured to vend G-strings, money capsules, or tokens. This turns the punching game into a prize-dispensing attraction handled at the machine itself.

Free Game Mode and Difficulty Levels

A free game mode is available for promotional or event use. Multiple difficulty levels adjust the scoring thresholds so operators can calibrate the challenge to their target audience.

How It Plays

The player throws a single punch at the mask-shaped strike target, and the machine registers the force and displays the score on the onboard readout. At the moment of impact, the halogen lights fire in a visible flash sequence. The festivity-design cabinet and full 104-inch height keep the active play state visible well beyond the immediate play area.

Specifications

Why Operators Love It

Modular Upgrade Path

The cabinet is built around a tiered upgrade system. Operators can add a second coin slot, an additional banknote acceptor, a card reader, a ticket dispenser, a noise reduction module, or Boxnet Wi-Fi connectivity after initial installation — each as a discrete add-on rather than a cabinet replacement.

Solid Mechanism with Rubber-Footed Legs

Kalkomat specifies a solid internal mechanism and rubber-footed legs. The rubber feet dampen vibration transfer to the floor during repeated strikes, reducing wear on the cabinet base and the surface beneath it — relevant for operators on hard floors or in shared-wall venues.

Low Idle Power Draw

At idle, the Boxer Mask draws 21.6 Watts — a low standby load for a full-height cabinet. Peak draw reaches 426 Watts during active play, so energy consumption is concentrated in play cycles rather than continuous operation.

Special Painting Options

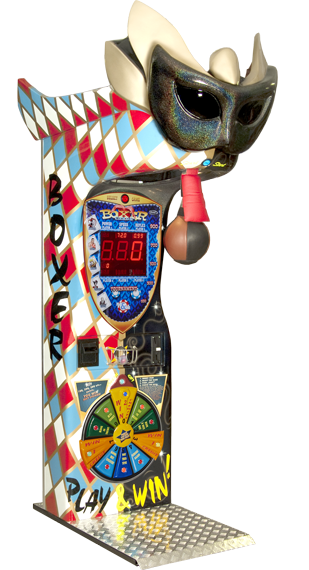

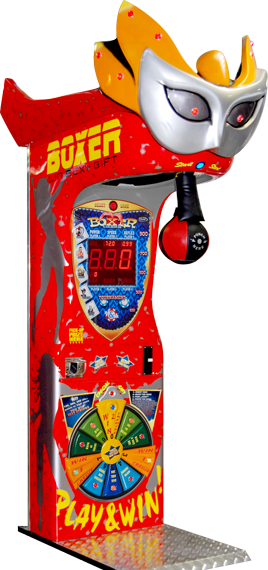

The Boxer Mask is available in multiple factory paint schemes — including Disco, Venetian, On Fire, USA, Chameleon, Tawa Blue, Tawa Orange, Tawa Yellow, Tawa Red, and Orange Fire. Selecting a scheme at order time means the cabinet arrives dressed for the venue’s aesthetic without a wrap or retrofit.

Frequently Asked Questions

What payment methods does the Kalkomat Boxer Mask accept?

This Kalkomat unit does not include standard payment methods, you can easily customize it to fit your needs. Upgrade your build with optional coin acceptance, bill validators, or credit card and card reader options.

Does the Kalkomat Boxer Mask dispense tickets or prizes?

A ticket dispenser is available as an optional upgrade. The machine can also be fitted with a capsule dispenser that vends G-strings, money capsules, or tokens. Both are add-ons and are not included in the base configuration.

What is the assembled footprint of the Kalkomat Boxer Mask?

The assembled cabinet measures 28 inches wide by 51 inches deep by 104 inches tall and weighs 342 lbs. The standard shipping crate measures 41 in W x 52 in L x 93 in H with a gross shipping weight of 435 lbs including pallet and packing materials.

Can the Boxer Mask be connected to a network?

Yes. The Boxnet Internet Wi-Fi upgrade adds network connectivity to the cabinet. This is an optional add-on and is not part of the base unit. A 5-meter power cable extension is also available as an optional accessory.

Ideal Placement

The Boxer Mask’s 28-inch width fits standard single-unit wall slots in family entertainment centers, bowling center arcades, and trampoline parks. Its 104-inch assembled height requires standard commercial ceiling clearance — confirm overhead clearance before install. Bar and tavern game rooms, pizzerias, and mall arcades are also common placements for strength-test cabinets of this format.

Shipping & Setup

We offer flexible freight delivery options, including curbside and lift-gate services. Shipping costs and timing are calculated at checkout based on your location and requirements.

Warranty & Support

Your purchase includes a standard manufacturer warranty and access to technical support to ensure long-term performance and uptime.
