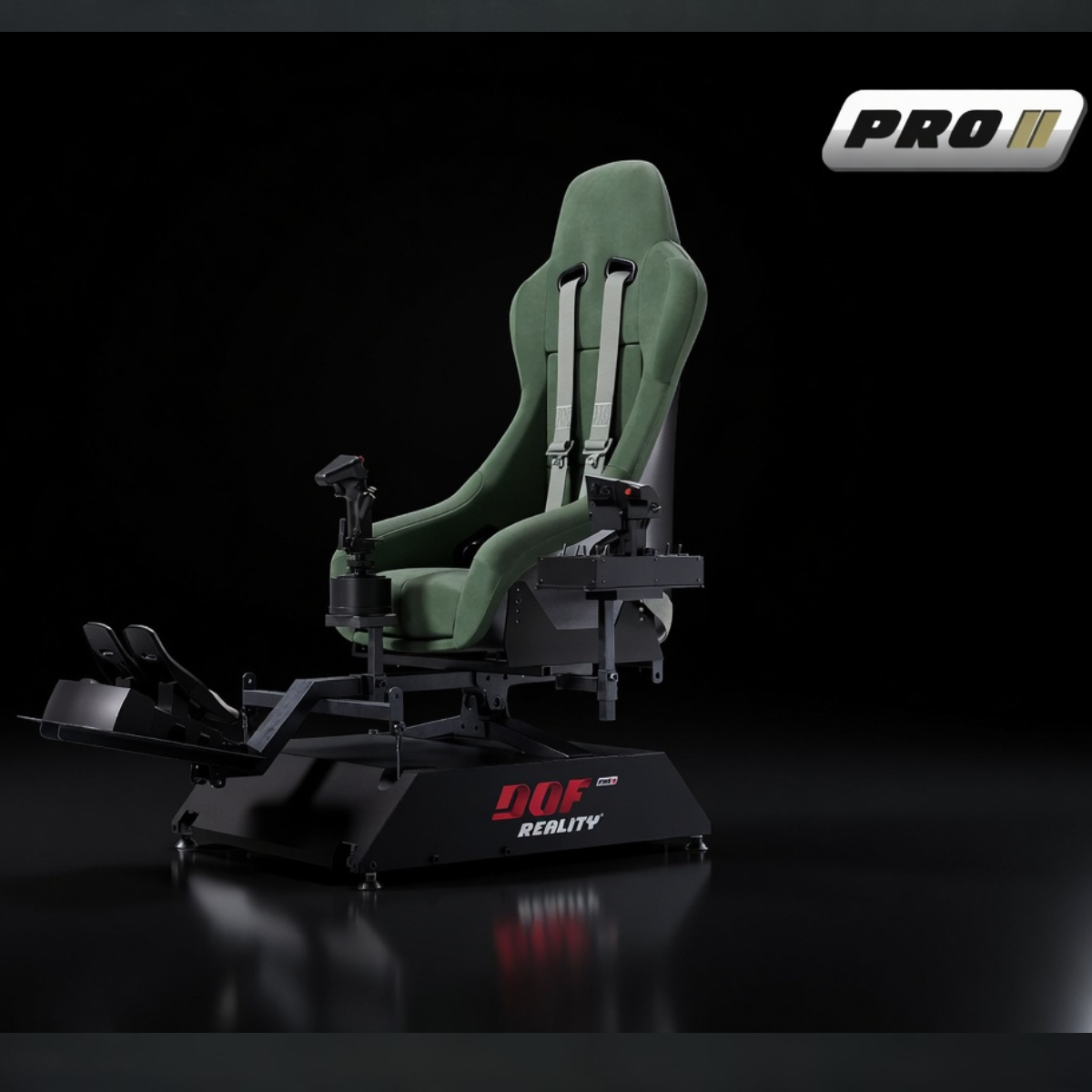

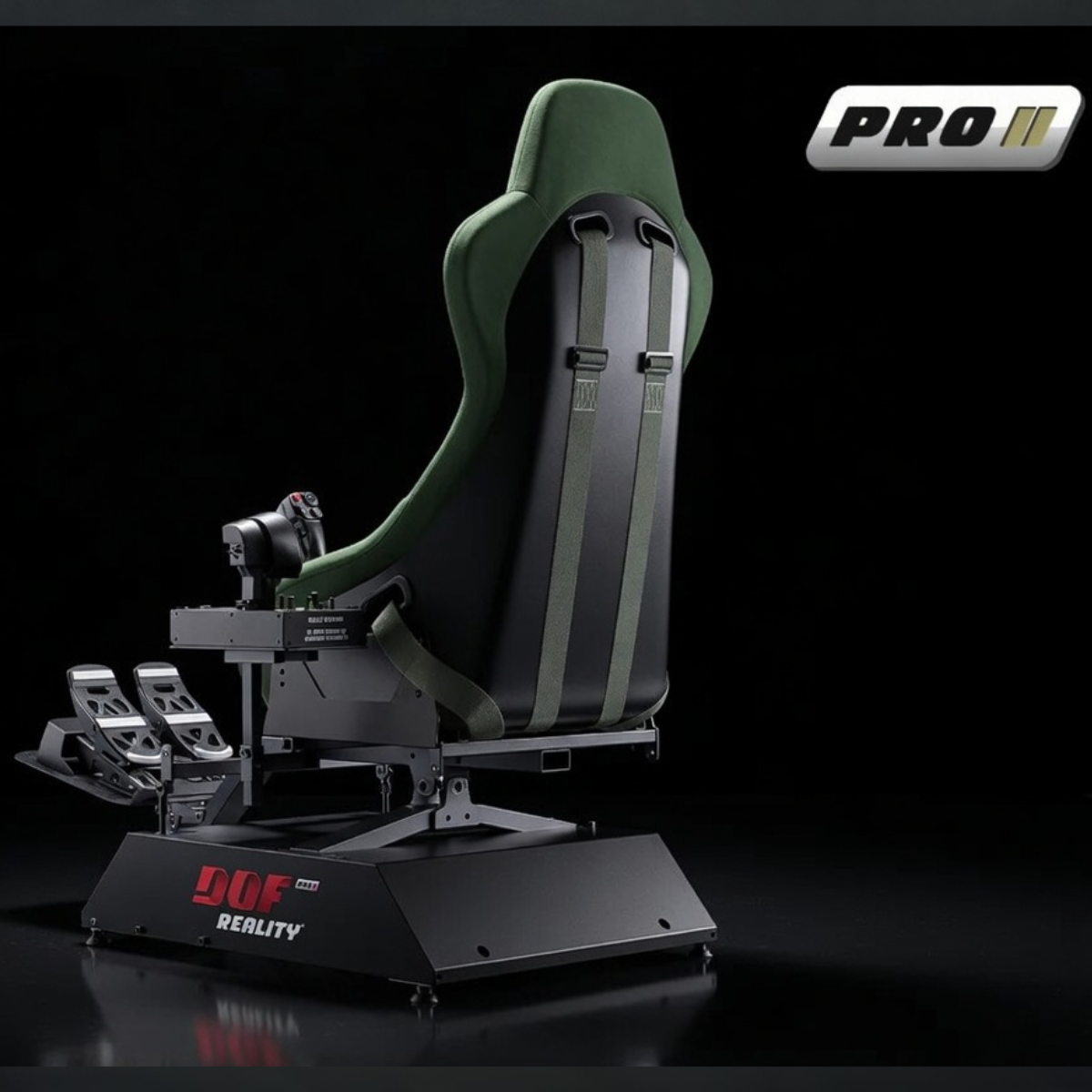

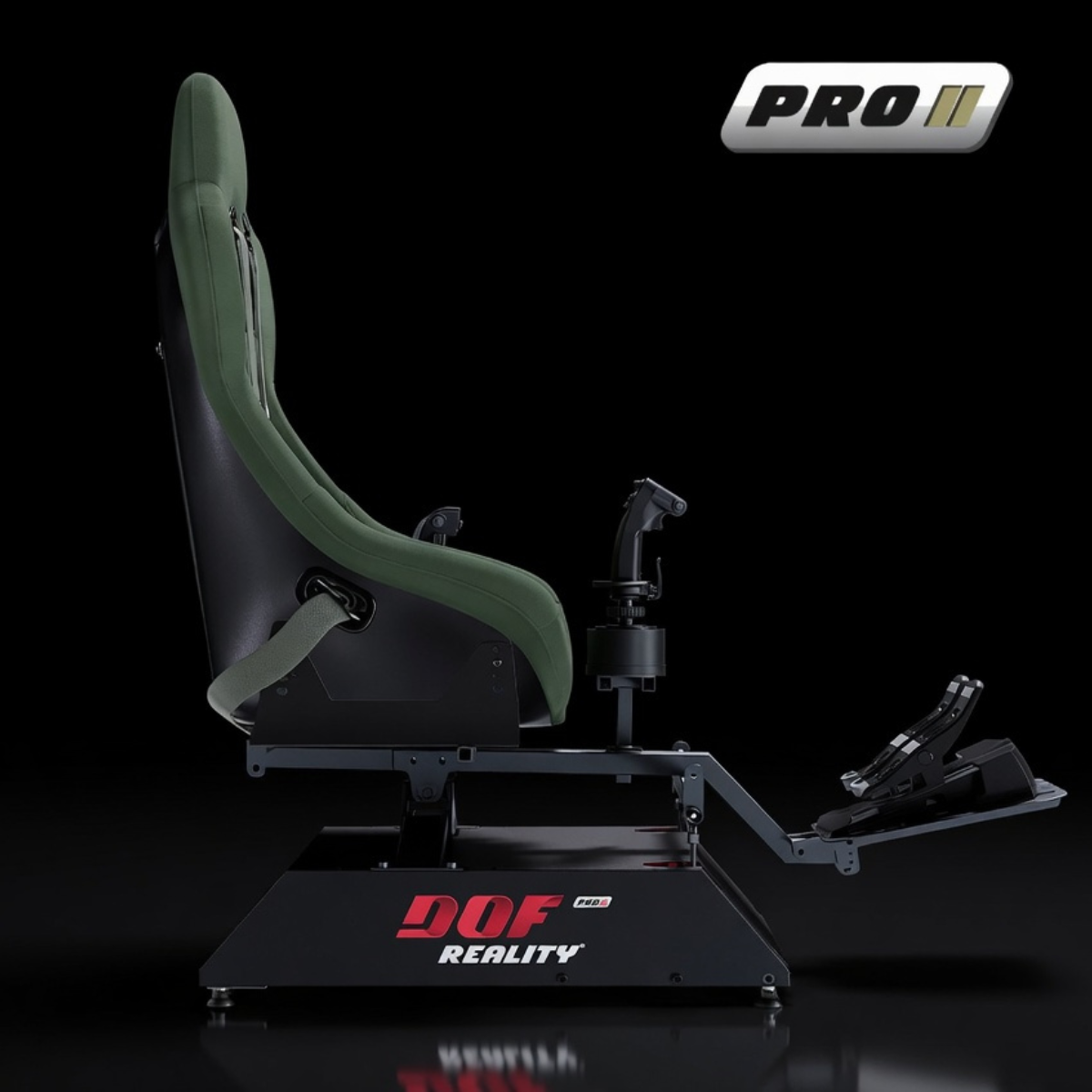

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2 - Image 1

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2 - Image 2

Click to enlarge

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2

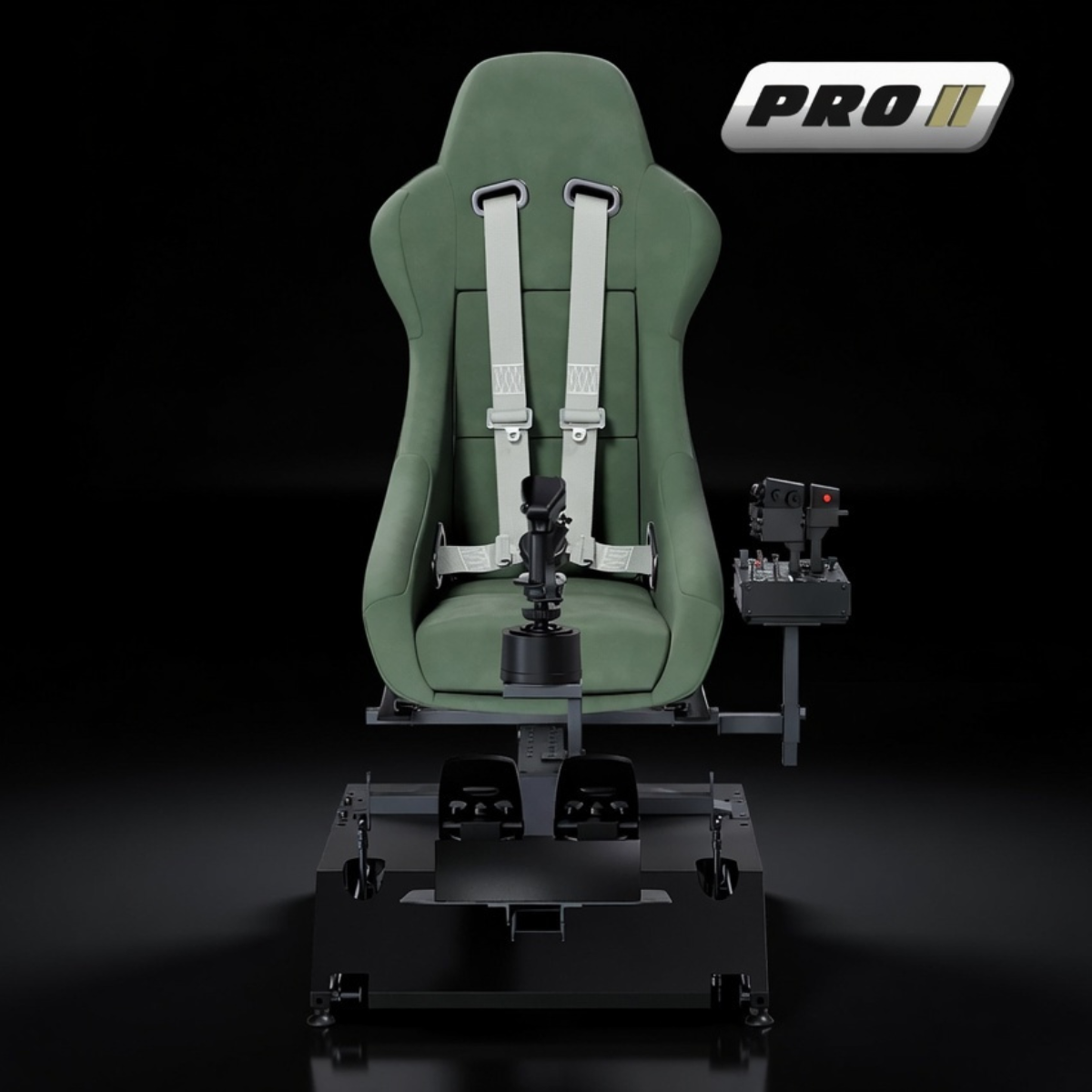

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2 - Image 3

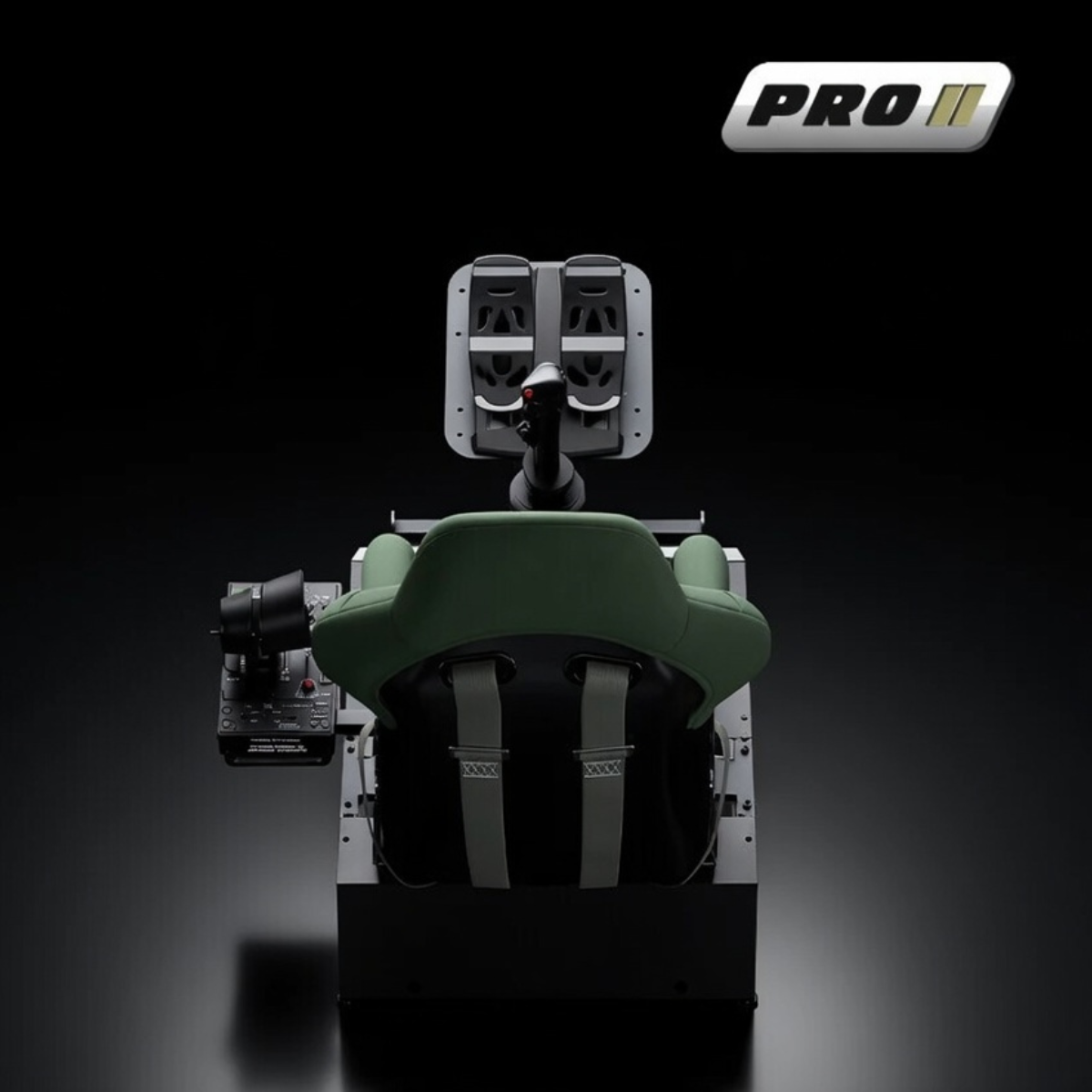

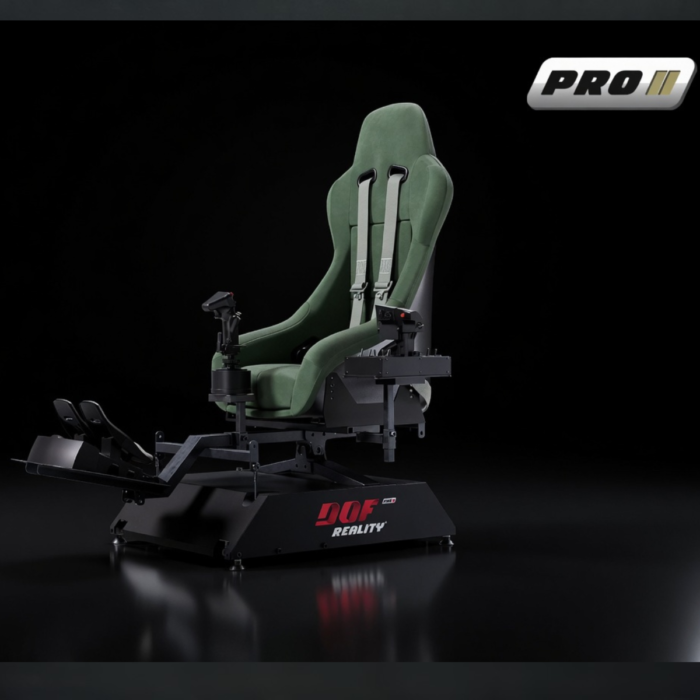

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2 - Image 4

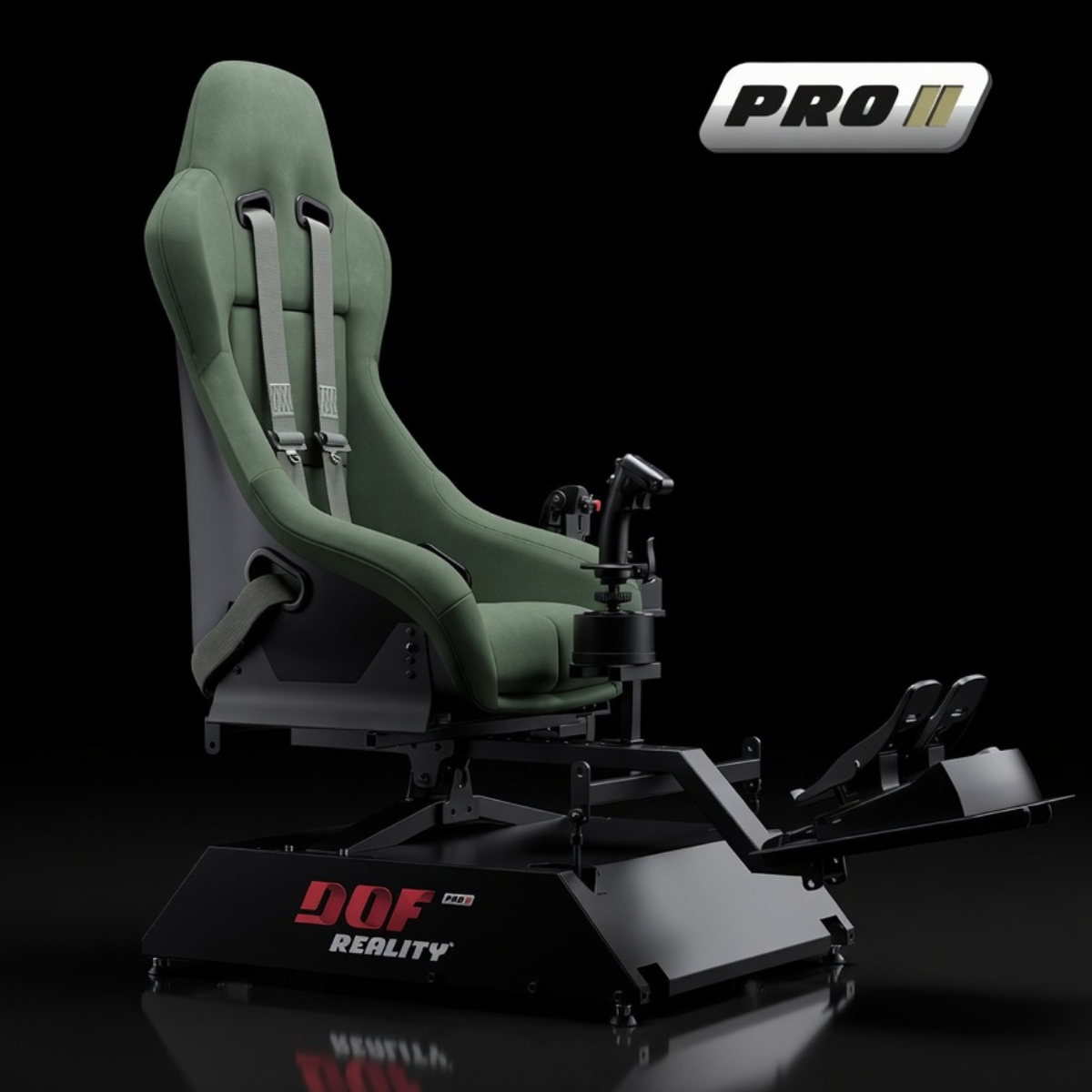

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2 - Image 5

DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform – P2

Name: DOF Reality Professional 2-Axis Helicopter Motion Simulator Platform - P2 - towertotower.co.uk
SKU: DOF-P2eH-PRO
Price: 2365.74 GBP
Availability: InStock

Original price was: £4,731.48.Current price is: £2,365.74.

Add to compare

Add to wishlist

SKU: DOF-P2eH-PRO Tags: 2-Axis Helicopter Simulators, Helicopter Motion Simulators, Motion Simulator Platforms

Description

The DOF Reality PRO 2 is the professional-grade 2-axis motion simulator platform for businesses and enthusiasts seeking the ultimate helicopter simulator experience. It excels in rotorcraft simulation while also supporting fixed-wing flight and racing without compromises.

The key innovation is the additional gearbox on each motor, providing extra smoothness and precision for the slow, delicate motions essential in helicopter flight profiles — from hover drift and tail rotor corrections to coordinated turns and descent control.

Just like in a genuine rotorcraft, the full-motion design moves your entire cockpit — seat, monitor, cyclic, collective, throttle, pedals, joystick/yoke — together, simulating authentic g-forces through muscle pressure and body contact. Powered by highly customizable Sim Racing Studio (SRS) software, it delivers precise telemetry-based feedback for rotor torque, ground effect, turbulence, vibrations, and more.

Why It Stands Out

Helicopter-Optimized 2-Axis Motion

Pitch + Roll with full-rig motion and gearbox enhancement delivers authentic hover, drift, tail rotor, and coordinated turn feedback in a compact, versatile platform.

Ultra-Smooth Low-Speed Precision

Additional gearboxes on each motor provide exceptional smoothness at low speeds — critical for realistic helicopter hover, tail rotor inputs, and subtle flight maneuvers.

Full Cockpit Synchronization

The entire cockpit moves together — seat, monitor, cyclic, collective, throttle, pedals, joystick/yoke — for cohesive, in-cockpit g-force feedback.

Multi-Sim Versatility

Excellent performance in helicopter simulation while also handling fixed-wing flight and racing cues seamlessly, with no hardware changes required.

Professional Grade & Upgradable

Robust commercial-grade construction with high pilot weight capacity (440 lbs) and official upgrade path to P3 or P6 for future-proofing.

What’s Included

Ready-to-Play Package

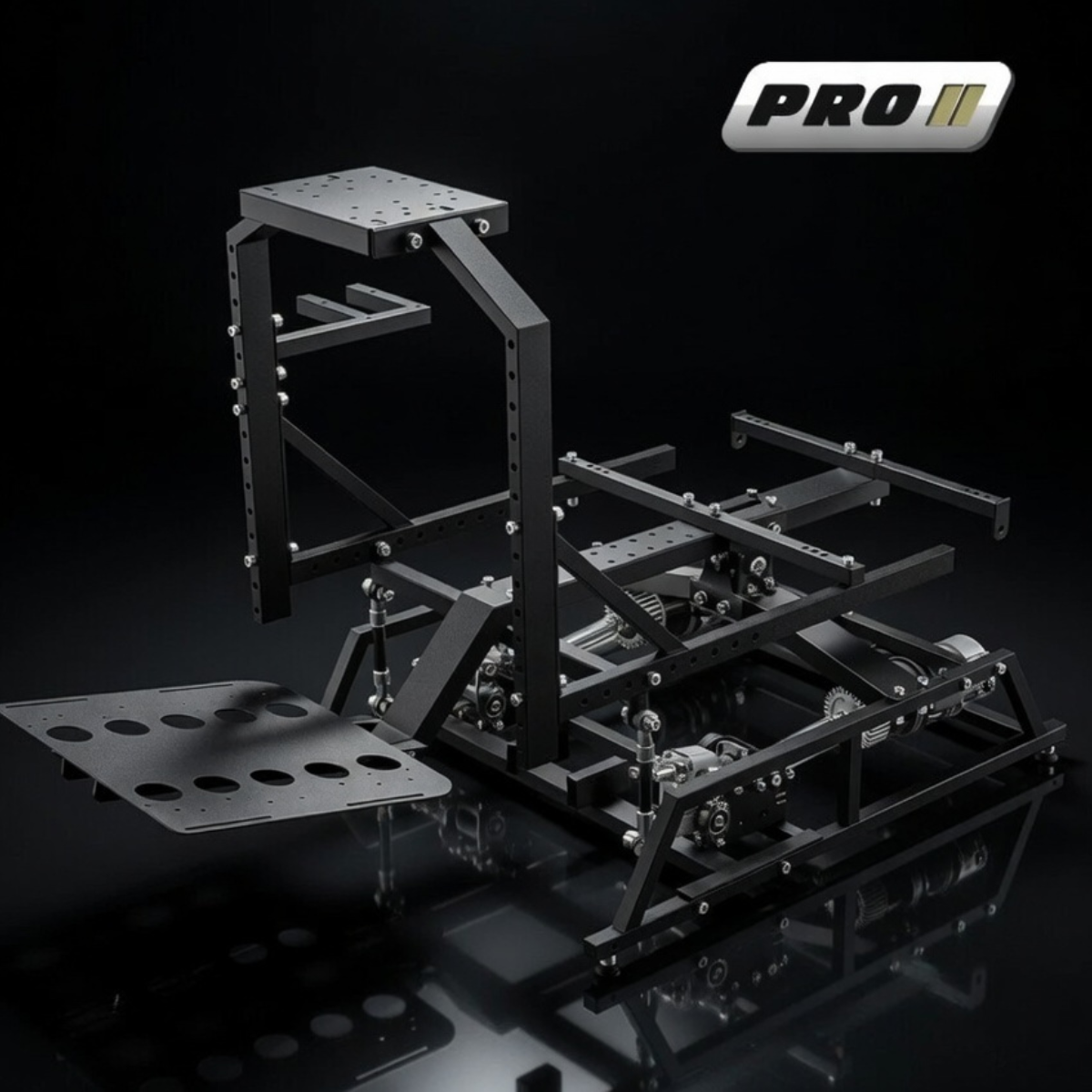

Rigid metal rig for normal & F1 pose
Mounts for seat or sliding rails
Integrated power drive motors with gearbox enhancement
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (cyclic, collective, pedals, throttle, etc.). The PRO 2 supports all major brands and types.

Specifications

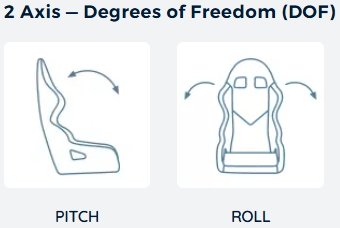

Degrees of Freedom	2 DOF (Pitch + Roll)
Full Platform Motion	Yes
Range of Motion	20°
Speed	75 cm/s (105°/s)
Torque	28 N/m
Acceleration	0.75G T / 0.5G L
Power Consumption	500 Watt (peak)
Box Weight (Size)	1) 29kg (94 × 38 × 28cm) 2) 29kg (80 × 60 × 25cm)
Floor Footprint	2×5 ft, 2 ft H (59×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	440 lbs / 200 kg
Warranty	Full 1 year (extensions available)
Upgradable	Compatible with P3 / P6 upgrade

Frequently Asked Questions

What makes the DOF Reality PRO 2 the best 2-axis helicopter motion simulator platform?

The PRO 2 features gearbox-enhanced motors for ultra-smooth slow-motion control, full-rig motion for authentic g-forces, and SRS telemetry optimized for helicopter cues like hover drift, turbulence, and rotor effects — unmatched for realism in training or enthusiast use.

Can the PRO 2 be used for fixed-wing flight and racing as well as helicopter simulation?

Yes — it’s fully versatile with pitch and roll that handle flight climbs/descents and racing acceleration/braking seamlessly, thanks to the smooth gearboxes and no hardware changes needed.

What cockpit components move on the DOF Reality PRO 2 helicopter platform?

The full-motion rig moves everything together — seat, monitor, cyclic, collective, throttle, pedals, joystick/yoke — for cohesive, in-cockpit immersion and realistic g-force feedback.

Which helicopter simulators are compatible with the PRO 2?

Powered by Sim Racing Studio (SRS), it supports major titles like DCS World (helicopter modules), Microsoft Flight Simulator, X-Plane, and others via telemetry.

Is the PRO 2 suitable for professional helicopter training or flight schools?

Absolutely — its smooth gearboxes, robust build, and precise motion make it popular for procedural training and muscle memory development. For certified programs, verify local aviation authority requirements.

How much space does the DOF Reality PRO 2 helicopter motion platform require?

Compact footprint: ~ 59 × 150 cm (2 × 5 ft) with 60 cm height. Allow extra clearance (50–100 cm around) for motion travel, safe access, and controls.

Is the PRO 2 upgradable to more degrees of freedom?

Yes — official upgrade kits to P3 (3DOF) or P6 (6DOF) add yaw, surge, sway, and heave for even greater immersion when needed.

Does the PRO 2 work well with VR for helicopter simulation?

Yes — full-platform motion dramatically boosts VR realism. Mount tracking sensors to the moving rig or use software compensation for smooth, low-nausea flights.

What warranty and support come with the DOF Reality PRO 2?

Includes a full 1-year warranty with optional extension. 24/7 global support from DOF Reality ensures quick help with setup, tuning, or issues.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the current SFU + kardan-joints version, software setup, tuning, VR motion compensation, troubleshooting, and technical specs.

DOF Reality PRO 2 2-axis helicopter motion simulator platform

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your PRO 2 platform (SFU gearbox + kardan joints configuration).

Download Full Official Manual (PDF)
