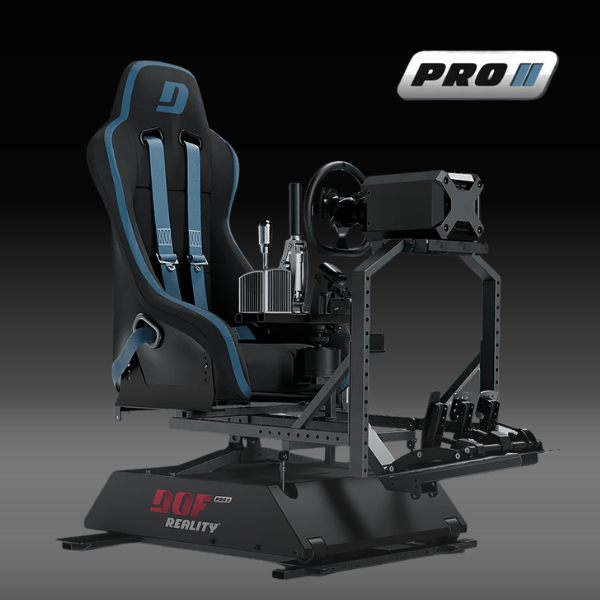

DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - Image 1

DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - Image 2

Click to enlarge

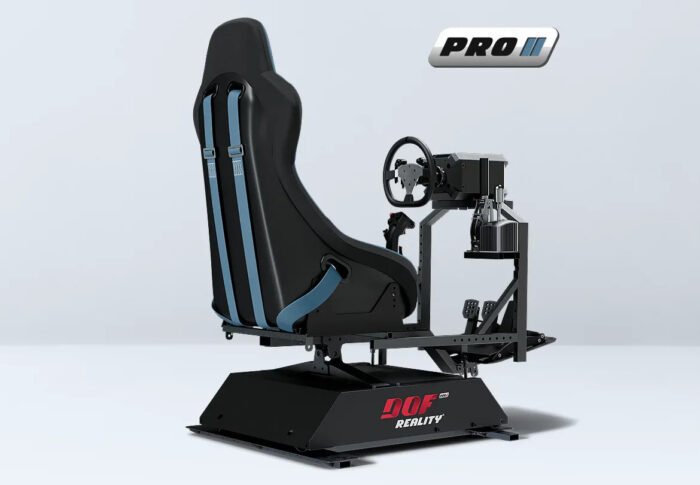

DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - Image 3

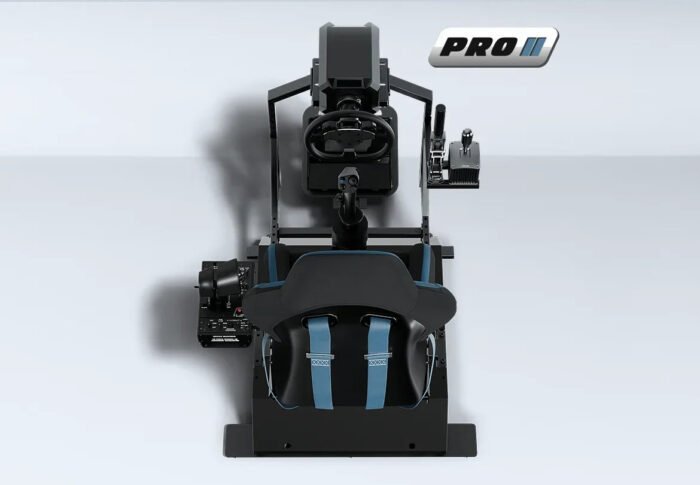

DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - Image 4

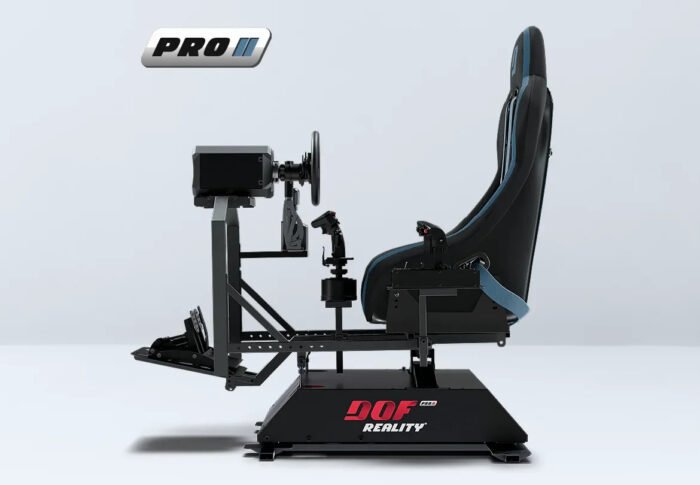

DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - Image 5

DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - Image 6

DOF Reality Professional 3-Axis Universal Motion Simulator Platform – P3

Name: DOF Reality Professional 3-Axis Universal Motion Simulator Platform - P3 - towertotower.co.uk
SKU: DOF-P3eU-PRO
Price: 2882.37 GBP
Availability: InStock

Original price was: £5,764.74.Current price is: £2,882.37.

Add to compare

Add to wishlist

SKU: DOF-P3eU-PRO Tags: 3-Axis Universal Simulators, Motion Simulator Platforms, Universal Motion Simulators

Description

The DOF Reality PRO 3 is the optimal professional-grade 3-axis motion simulator platform for businesses and enthusiasts seeking the pinnacle of racing, flight, or helicopter simulation. It delivers top-tier design, precision engineering, superior quality, and unmatched performance with no compromises across disciplines.

The key innovation is the additional gearbox on each motor, providing extra smoothness and precision for slow, nuanced motions in flight and helicopter profiles — while delivering crisp, responsive feedback for high-speed racing dynamics like acceleration, braking, and traction loss.

Just like in a genuine vehicle or cockpit, the full-motion design moves your entire setup — seat, monitor, wheel/pedals, yoke/joystick, collective/throttle — together, simulating authentic g-forces through muscle pressure and body contact. Powered by highly customizable Sim Racing Studio (SRS) software, it delivers precise telemetry-based feedback for road bumps, texture, vibrations, gear changes, turbulence, rotor torque, collisions, understeer/oversteer, drifts, and more.

Why It Stands Out

True 3-Axis Universal Motion

Pitch + Roll + front-center yaw with true side-to-side and front-to-back motion for faithful replication of acceleration, rear traction loss, coordinated turns, climb/descent, and yaw corrections.

Gearbox-Enhanced Smoothness

Additional gearboxes on each motor deliver ultra-smooth low-speed control (ideal for flight/helicopter) while maintaining sharp, responsive feedback for racing dynamics.

Full Cockpit Motion

The entire rig moves together — seat, monitor, wheel/pedals, yoke/joystick, collective/throttle — for cohesive, in-cockpit g-force feedback across all simulation types.

Multi-Discipline Versatility

Performs flawlessly in racing (traction loss, drifts), fixed-wing flight (climbs/descents), and helicopter (hover, yaw, rotor effects) without hardware changes.

Upgradable & Future-Proof

Official upgrade path to the full 6DOF PRO 6 adds surge, sway, and heave when you’re ready for even greater immersion.

What’s Included

Ready-to-Play Package

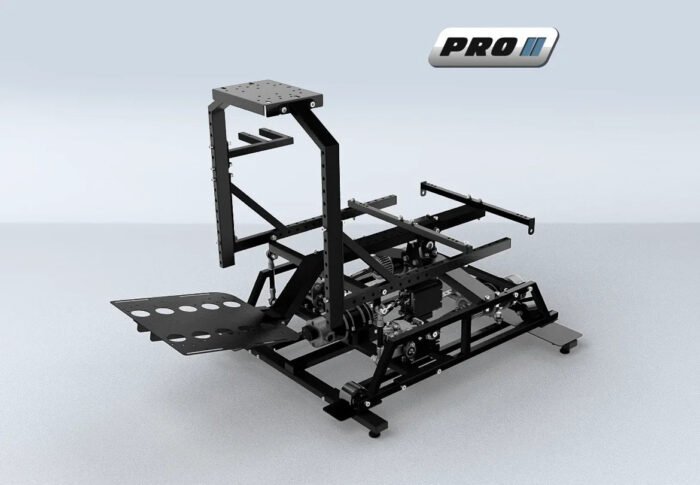

Rigid metal rig for normal & F1 pose
Mounts for seat or sliding rails
Integrated power drive motors with gearbox enhancement
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (wheel, pedals, yoke, collective, throttle, etc.). The PRO 3 supports all major brands and types.

Specifications

Degrees of Freedom	3 DOF (Pitch + Roll + Yaw/Rear Traction)
Full Platform Motion	Yes
Range of Motion	20°
Speed	75 cm/s (105°/s)
Torque	28 N/m
Acceleration	0.75G T / 0.5G L
Power Consumption	750 Watt (peak)
Box Weight (Size)	1) 35kg (94 × 38 × 28cm) 2) 44kg (80 × 60 × 25cm)
Floor Footprint	3×5 ft, 2 ft H (100×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	440 lbs / 200 kg
Warranty	Full 1 year (extensions available)
Upgradable	Compatible with P6 upgrade

Frequently Asked Questions

What makes the DOF Reality PRO 3 the best 3DOF motion simulator for racing, flight, and helicopter?

The PRO 3 combines pitch, roll, and front-center yaw with gearbox-enhanced motors for ultra-smooth low-speed control, full-rig motion for authentic g-forces, and SRS telemetry optimized for racing (traction loss, drifts), flight (climbs/descents), and helicopter (hover, yaw) cues.

How does the gearbox enhancement benefit the PRO 3 across different simulations?

The additional gearboxes provide extra smoothness at low speeds — critical for realistic flight/helicopter transitions and hover, while maintaining sharp, responsive feedback for racing acceleration and handling.

What cockpit components move on the DOF Reality PRO 3 platform?

Full-motion rig moves everything together — seat, monitor, wheel/pedals, yoke/joystick, collective/throttle — for cohesive, in-cockpit immersion and realistic g-force feedback.

Which simulators are compatible with the PRO 3 for racing, flight, and helicopter?

Powered by Sim Racing Studio (SRS), it supports major titles like iRacing, Assetto Corsa, Microsoft Flight Simulator, X-Plane, DCS World, and more via telemetry.

Can I use the PRO 3 with consoles or VR?

PC is standard for full SRS features. Add the optional MagicBox for console motion support. It’s VR-ready — mount tracking sensors to the rig for seamless immersion across all sim types.

How much space is required for the DOF Reality PRO 3?

Footprint is approximately 100 × 150 cm (3 × 5 ft) with 60 cm height. Allow extra clearance (50–100 cm around) for motion travel, safe access, and peripherals.

Is the PRO 3 upgradable to more degrees of freedom?

Yes — official upgrade path to P6 (6DOF) adds surge, sway, and heave for even greater immersion when ready.

What warranty and support come with the DOF Reality PRO 3?

Includes a full 1-year warranty with optional extension. 24/7 global support from DOF Reality ensures quick help with setup, tuning, or issues.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the 3 DOF platform, software setup, tuning, VR motion compensation, troubleshooting, and technical specifications.

DOF Reality PRO 3 3-axis universal motion simulator platform for racing flight and helicopter

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your PRO 3 platform (SFU gearbox configuration).

Download Full Official Manual (PDF)
