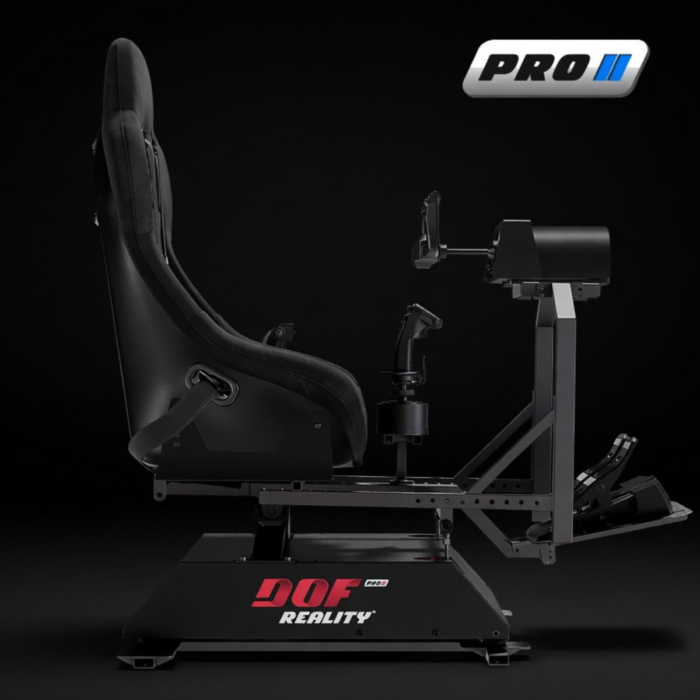

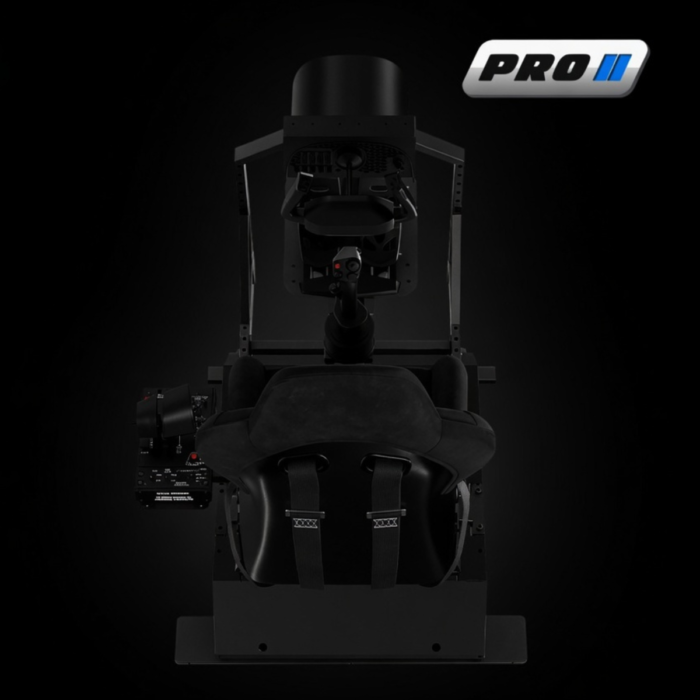

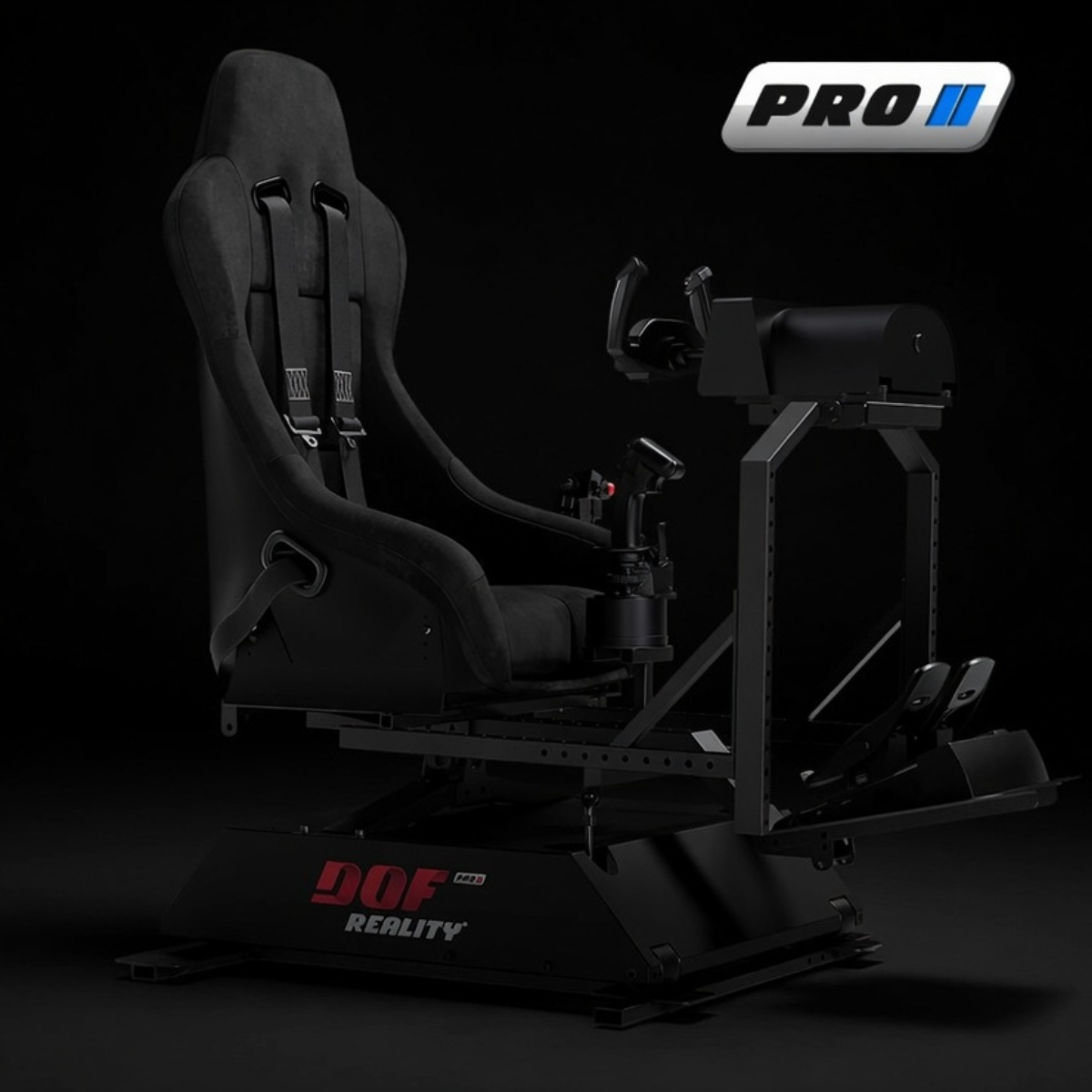

DOF Reality Professional 3-Axis Flight Motion Simulator Platform - P3

DOF Reality Professional 3-Axis Flight Motion Simulator Platform - P3 - Image 3

DOF Reality Professional 3-Axis Flight Motion Simulator Platform – P3

Name: DOF Reality Professional 3-Axis Flight Motion Simulator Platform - P3 - towertotower.co.uk
SKU: DOF-P3eF-PRO
Price: 2882.37 GBP
Availability: InStock

Original price was: £5,764.74.Current price is: £2,882.37.

Add to compare

Add to wishlist

SKU: DOF-P3eF-PRO Tags: 3-Axis Flight Simulators, Featured Products, Flight Simulators, Motion Simulator Platforms

Description

The DOF Reality PRO 3 is the optimal professional-grade 3-axis motion simulator platform for businesses and enthusiasts seeking the pinnacle of flight simulation. It excels in fixed-wing flight while also supporting helicopter and racing simulations without any drawbacks.

The key innovation is the additional gearbox on each motor, providing extra smoothness and precision for the slow, nuanced motions essential in flight and helicopter profiles — from climb/descent control and coordinated turns to hover drift and tail rotor feedback.

Just like in a genuine aircraft or rotorcraft, the full-motion design moves your entire cockpit — seat, monitor, yoke/joystick, pedals, collective/throttle — together, simulating authentic g-forces through muscle pressure and body contact. Powered by highly customizable Sim Racing Studio (SRS) software, it delivers precise telemetry-based feedback for runway bumps, turbulence, vibrations, rotor torque, collisions, ground effect, and more.

Why It Stands Out

Advanced 3DOF Flight Motion

Pitch + roll + front-center yaw with true side-to-side and front-to-back motion faithfully replicates climb, descent, coordinated turns, and yaw corrections.

Gearbox-Enhanced Smoothness

Additional gearboxes deliver ultra-smooth low-speed precision — critical for realistic flight/helicopter transitions and hover, while maintaining sharp response for racing.

Full Cockpit Motion

The entire cockpit moves together — seat, monitor, yoke/joystick, pedals, collective/throttle — for cohesive, in-cockpit g-force feedback.

Multi-Sim Versatility

Seamless performance in fixed-wing flight, helicopter, and racing simulators — no hardware changes required.

Professional Grade Build

Robust commercial-grade construction with high pilot weight capacity (440 lbs) and upgrade path to P6 (6DOF) for future-proofing.

What’s Included

Ready-to-Play Package

Rigid metal rig for normal & F1 pose
Mounts for seat or sliding rails

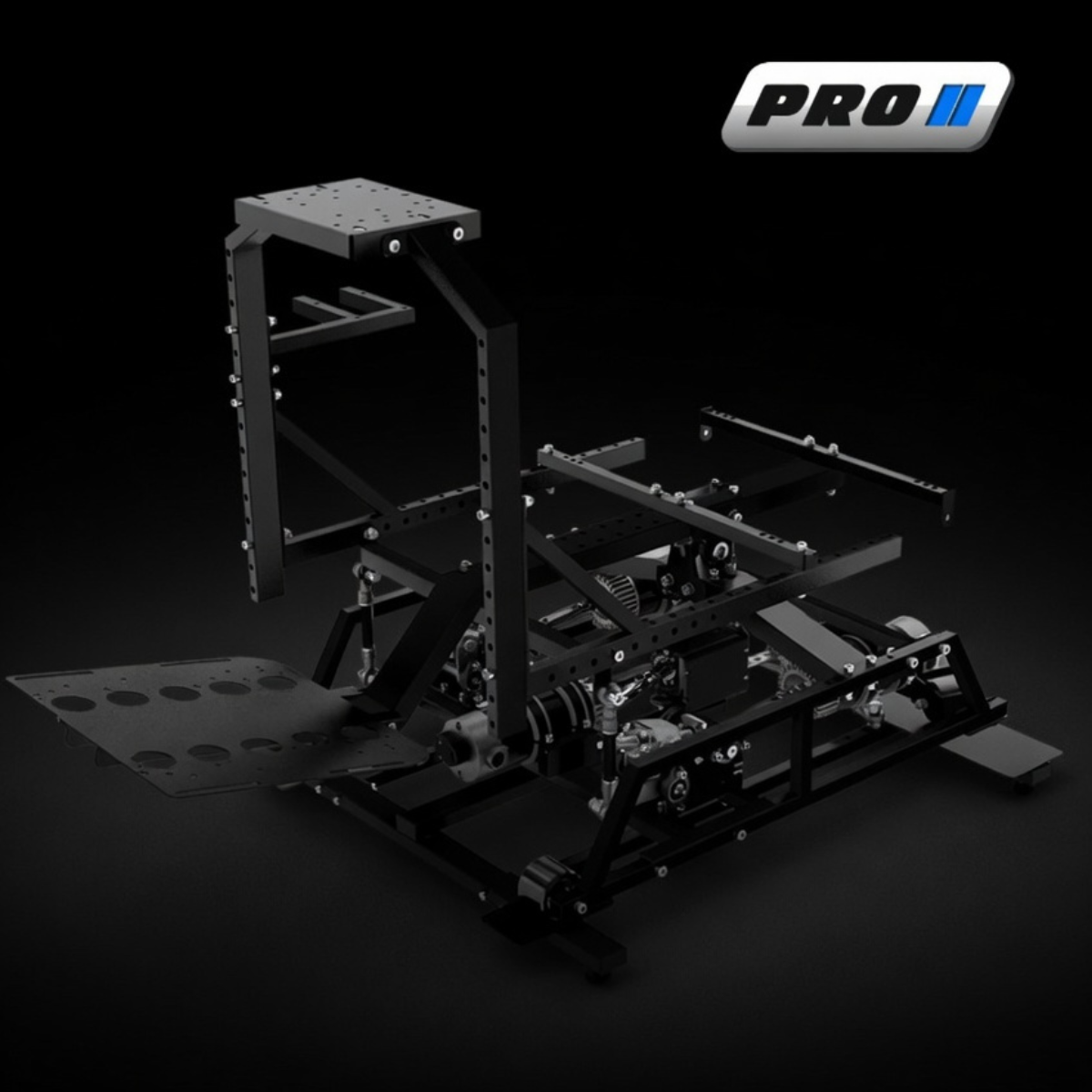

Integrated power drive motors with gearbox enhancement
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (yoke, pedals, joystick, collective, throttle, etc.). The PRO 3 supports all major brands and types.

Specifications

Degrees of Freedom	3 DOF (Pitch + Roll + Yaw/Rear Traction)
Full Platform Motion	Yes
Range of Motion	20°
Speed	75 cm/s (105°/s)
Torque	28 N/m
Acceleration	0.75G T / 0.5G L
Power Consumption	750 Watt (peak)
Box Weight (Size)	1) 35kg (94 × 38 × 28cm) 2) 44kg (80 × 60 × 25cm)
Floor Footprint	3×5 ft, 2 ft H (100×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	440 lbs / 200 kg
Warranty	Full 1 year (extensions available)
Upgradable	Compatible with P6 upgrade

Frequently Asked Questions

What makes the DOF Reality PRO 3 the best 3DOF motion simulator for flight and helicopter simulation?

The PRO 3 features pitch, roll, and front-center yaw with gearbox-enhanced motors for ultra-smooth low-speed control, full-rig motion for authentic g-forces, and SRS telemetry optimized for flight/helicopter cues like turbulence, coordinated turns, hover drift, and rotor effects.

Can the PRO 3 be used for racing in addition to flight and helicopter sims?

Yes — it’s fully versatile with 3DOF motion that handles racing acceleration/braking, understeer/oversteer, and traction loss seamlessly, thanks to the smooth gearboxes.

What cockpit components move on the DOF Reality PRO 3 platform?

Full-motion rig moves everything together — seat, monitor, yoke/joystick, pedals, collective/throttle — for cohesive, in-cockpit immersion and realistic g-force feedback.

Which flight and helicopter simulators are compatible with the PRO 3?

Powered by Sim Racing Studio (SRS), it supports major titles like Microsoft Flight Simulator, X-Plane, DCS World (helicopter modules), and more via telemetry.

Is the PRO 3 suitable for professional flight training or helicopter schools?

Yes — its smooth gearboxes, robust build, and precise 3DOF motion make it popular for procedural training, muscle memory development, and demo setups. For certified programs, verify local aviation authority requirements.

How much space is required for the DOF Reality PRO 3 motion platform?

Footprint is approximately 100 × 150 cm (3 × 5 ft) with 60 cm height. Allow extra clearance (50–100 cm around) for motion travel, safe access, and controls.

Is the PRO 3 upgradable to full 6DOF?

Yes — official upgrade path to P6 (6DOF) adds surge, sway, and heave for even greater immersion when ready.

Does the PRO 3 work well with VR headsets for flight simulation?

Yes — full-platform motion dramatically enhances VR realism. Mount tracking sensors to the moving rig or use software compensation for smooth, low-nausea experiences.

What warranty and support come with the DOF Reality PRO 3?

Includes a full 1-year warranty with optional extension. 24/7 global support from DOF Reality ensures quick help with setup, tuning, or issues.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the 3 DOF platform, software setup, tuning, VR motion compensation, troubleshooting, and technical specifications.

DOF Reality PRO 3 3-axis motion simulator platform for flight helicopter and racing

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your PRO 3 platform (SFU gearbox configuration).

Download Full Official Manual (PDF)
