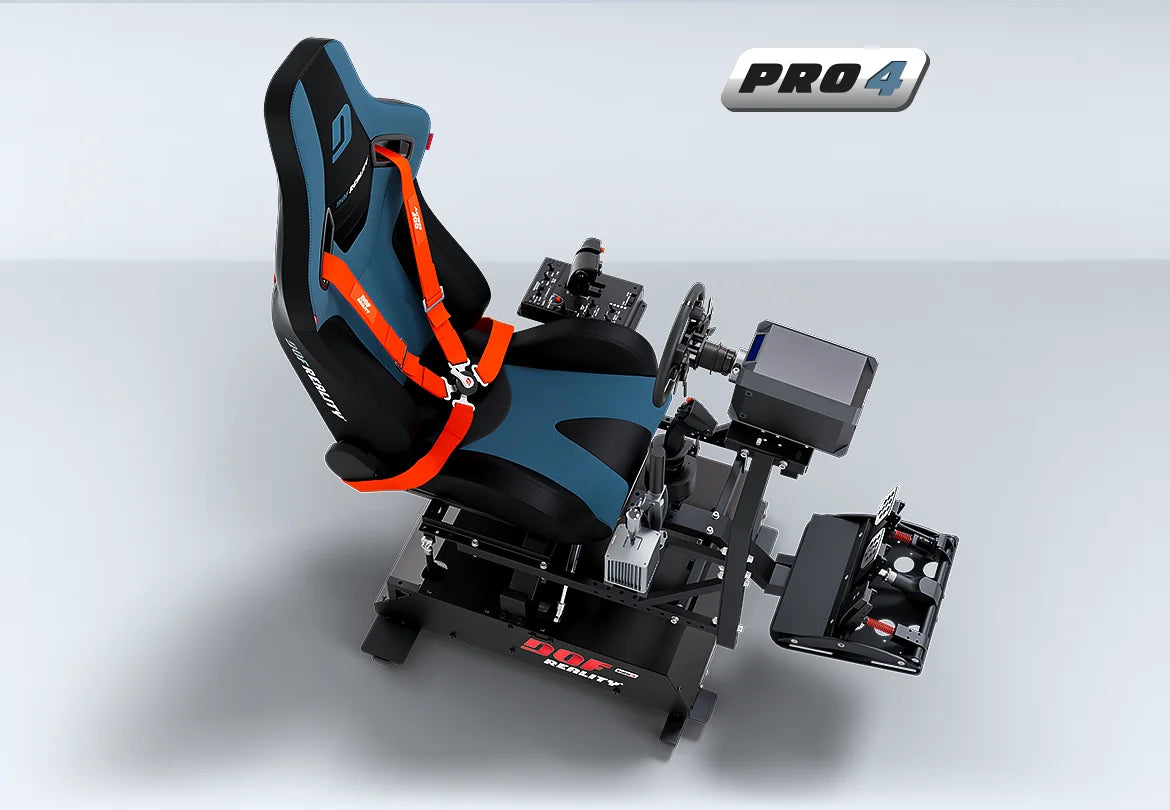

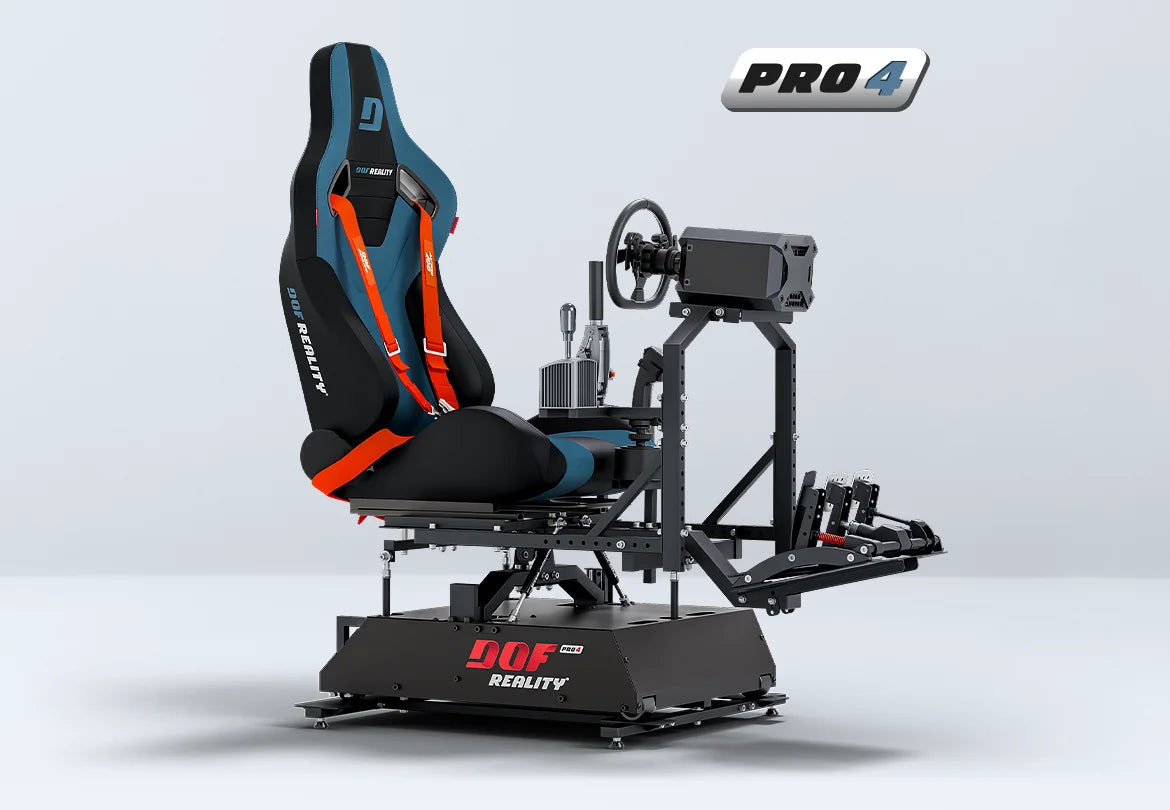

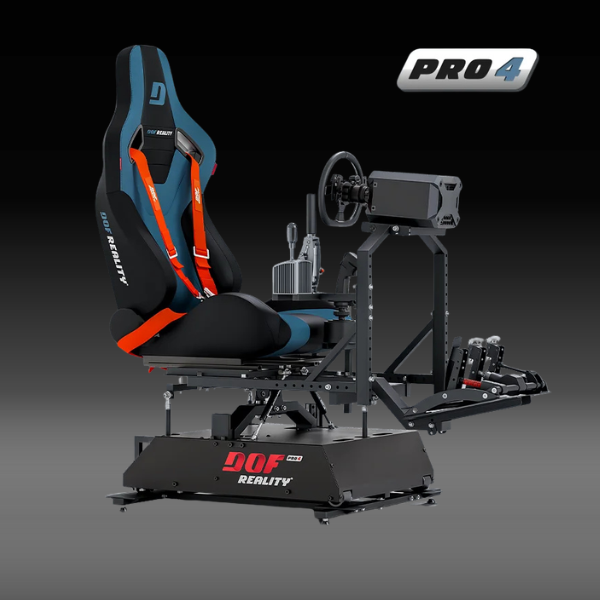

DOF Reality Professional 4-Axis Universal Motion Simulator Platform – P4

Name: DOF Reality Professional 4-Axis Universal Motion Simulator Platform - P4 - towertotower.co.uk
SKU: DOF-P4eU-PRO
Price: 3829.53 GBP
Availability: InStock

Original price was: £7,659.06.Current price is: £3,829.53.

Add to compare

Add to wishlist

SKU: DOF-P4eU-PRO Tags: 4-Axis Universal Simulators, Motion Simulator Platforms, Universal Motion Simulators

Description

The DOF Reality PRO P4 Universal Edition is the ideal top-tier 4-axis motion simulator platform for sim racers, pilots, and enthusiasts seeking maximum flexibility and realism. It delivers superior design, precision engineering, commercial-grade quality, and unmatched performance in a professional package.

This PRO model excels as a universal motion platform with true 4 degrees of freedom: Pitch, Roll, Yaw, and Heave. The integrated power drive motors with SFU and Xtra Smooth Gearing deliver exceptionally smooth and precise motion for racing, fixed-wing flight, helicopter simulation, and multi-genre use. Since 2014, DOF Reality has pioneered high-performance motion simulators for enthusiasts and businesses.

The full-motion design moves your entire cockpit — seat, monitor, steering wheel, pedals, cyclic, collective, yoke, and joystick — together, simulating authentic g-forces through muscle pressure and body contact. Powered by highly customizable Sim Racing Studio (SRS) software, it delivers precise telemetry-based feedback for racing (acceleration, braking, cornering), flight (climbs, turbulence), and helicopter (hover drift, tail rotor, ground effect).

Why It Stands Out

True 4-Axis Motion

4 DOF (Pitch + Roll + Yaw + Heave) with SFU and Xtra Smooth Gearing for exceptionally smooth, precise movement across racing, fixed-wing, helicopter, and multi-genre simulation.

Full Platform Motion

Moves the entire cockpit (seat, monitor, wheel/pedals, cyclic, collective, yoke, joystick) together for authentic in-cockpit immersion and g-force feedback.

Xtra Smooth Gearing

Professional-grade SFU and Xtra Smooth Gearing deliver superior smoothness and precision, ideal for demanding simulation environments.

Universal Compatibility

Powered by Sim Racing Studio (SRS), it supports iRacing, Assetto Corsa, DCS World, Microsoft Flight Simulator, X-Plane, Forza, and many more via telemetry.

Built for Versatility

Excellent for sim racing (acceleration, braking, cornering), flight (climbs, turbulence), and helicopter (hover, ground effect, tail rotor) with higher weight capacity and upgradability to PRO P6.

What’s Included

Ready-to-Play Package

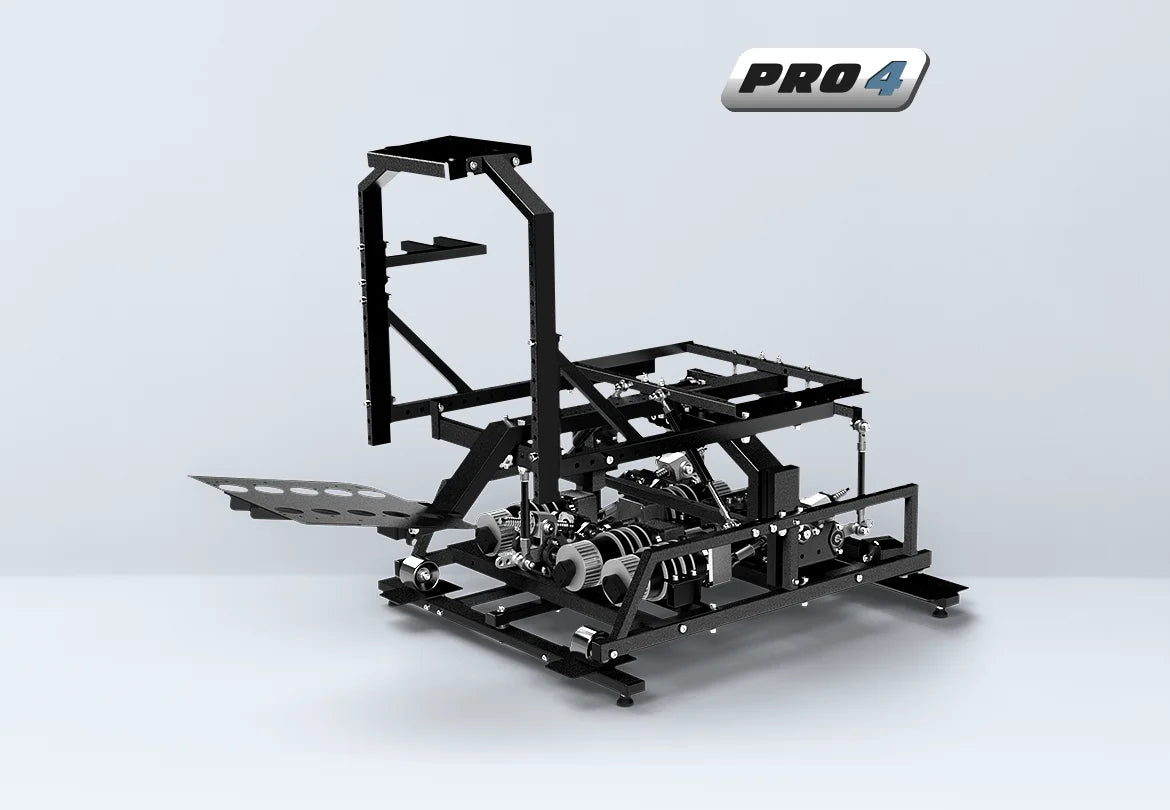

Rigid metal rig for normal, racing & flight pose
Mounts for seat or sliding rails
Integrated power drive motors with SFU and Xtra Smooth Gearing
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play PRO motion platform only. Customer provides own seat, VR headset, and controllers (steering wheel, pedals, cyclic, collective, yoke, etc.). Supports all major racing and flight sim brands. Games/sim titles not included.

Specifications

Degrees of Freedom	4 DOF (Pitch + Roll + Yaw + Heave)
Full Platform Motion	Yes
Range of Motion	20°
Speed	75 cm/s (105°/s)
Torque	28 N/m
Acceleration	0.6G all directions
Power Consumption	750 Watt (peak)
Box Weight (Size)	1) 35kg (94 × 38 × 28cm) 2) 44kg (80 × 60 × 25cm)
Floor Footprint	3×5 ft, 2 ft H (100×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	440 lbs / 200 kg
Warranty	Full 1 year (extensions available)
Upgradable	To PRO P6

Frequently Asked Questions

What makes the DOF Reality PRO P4 Universal Edition so versatile?

The PRO P4 delivers true 4 DOF (Pitch + Roll + Yaw + Heave) with SFU and Xtra Smooth Gearing, making it excellent for sim racing, fixed-wing flight, helicopter simulation, and general training.

Can the PRO P4 be used for both racing and flight simulation?

Yes — its 4-axis motion with Heave performs exceptionally well for racing (acceleration, cornering, bumps), fixed-wing flight (climbs, turbulence), and helicopter (hover, ground effect, tail rotor).

What cockpit components move on the PRO P4 Universal platform?

The full-motion rig moves everything together — seat, monitor, steering wheel, pedals, cyclic, collective, yoke, and joystick — for cohesive, in-cockpit immersion across all simulation types.

Which simulators are compatible with the PRO P4 Universal?

Powered by Sim Racing Studio (SRS), it supports iRacing, Assetto Corsa, DCS World, Microsoft Flight Simulator, X-Plane, Forza, and many more via telemetry.

Is the PRO P4 suitable for professional or commercial use?

Yes — its robust build, high weight capacity (440 lbs), and professional-grade smooth motion make it ideal for serious training and commercial simulator setups.

How much space is required for the DOF Reality PRO P4 Universal Edition?

Footprint is approximately 100 × 150 cm (3 × 5 ft) with 60 cm height. Allow extra clearance for full motion travel.

What warranty and support come with the DOF Reality PRO P4 Universal Edition?

Includes a full 1-year warranty with optional extension. 24/7 global support ensures quick help with setup, tuning, or issues.

Shipping & Returns

Shipping Policy

As an Official DOF Reality Partner, we offer all-in pricing with free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started. Delays over 30 days past promised date allow full refund.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

Official DOF Reality guides include step-by-step assembly, software setup, tuning, VR motion compensation, troubleshooting, and technical specs.

DOF Reality PRO P4 Universal Edition 4-axis PRO motion simulator platform

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your P4 platform.

Download Full Official Manual (PDF)
