DOF Reality HERO 4-Axis Helicopter Motion Simulator Platform – H4

Name: DOF Reality HERO 4-Axis Helicopter Motion Simulator Platform - H4 - towertotower.co.uk
SKU: DOF-H4rH-HERO
Price: 2365.74 GBP
Availability: InStock

Original price was: £4,731.48.Current price is: £2,365.74.

Add to compare

Add to wishlist

SKU: DOF-H4rH-HERO Tags: 4-Axis Helicopter Simulators, Helicopter Motion Simulators, Motion Simulator Platforms

Description

The DOF Reality HERO H4 Helicopter Edition is the ideal 4-axis motion simulator platform with SFU gearboxes for helicopter pilots seeking true 4DOF realism at an accessible price. It delivers top-tier design, precision engineering, superior quality, and unmatched performance tailored specifically for rotorcraft simulation.

This model excels in helicopter simulation with true 4 degrees of freedom: Pitch, Roll, Yaw, and Heave. The integrated power drive motors with SFU gearboxes provide the smooth, precise motion essential for hover drift, tail rotor corrections, coordinated turns, descent, ground effect, and delicate rotorcraft control. Since 2014, DOF Reality has pioneered cost-effective, high-performance motion simulators.

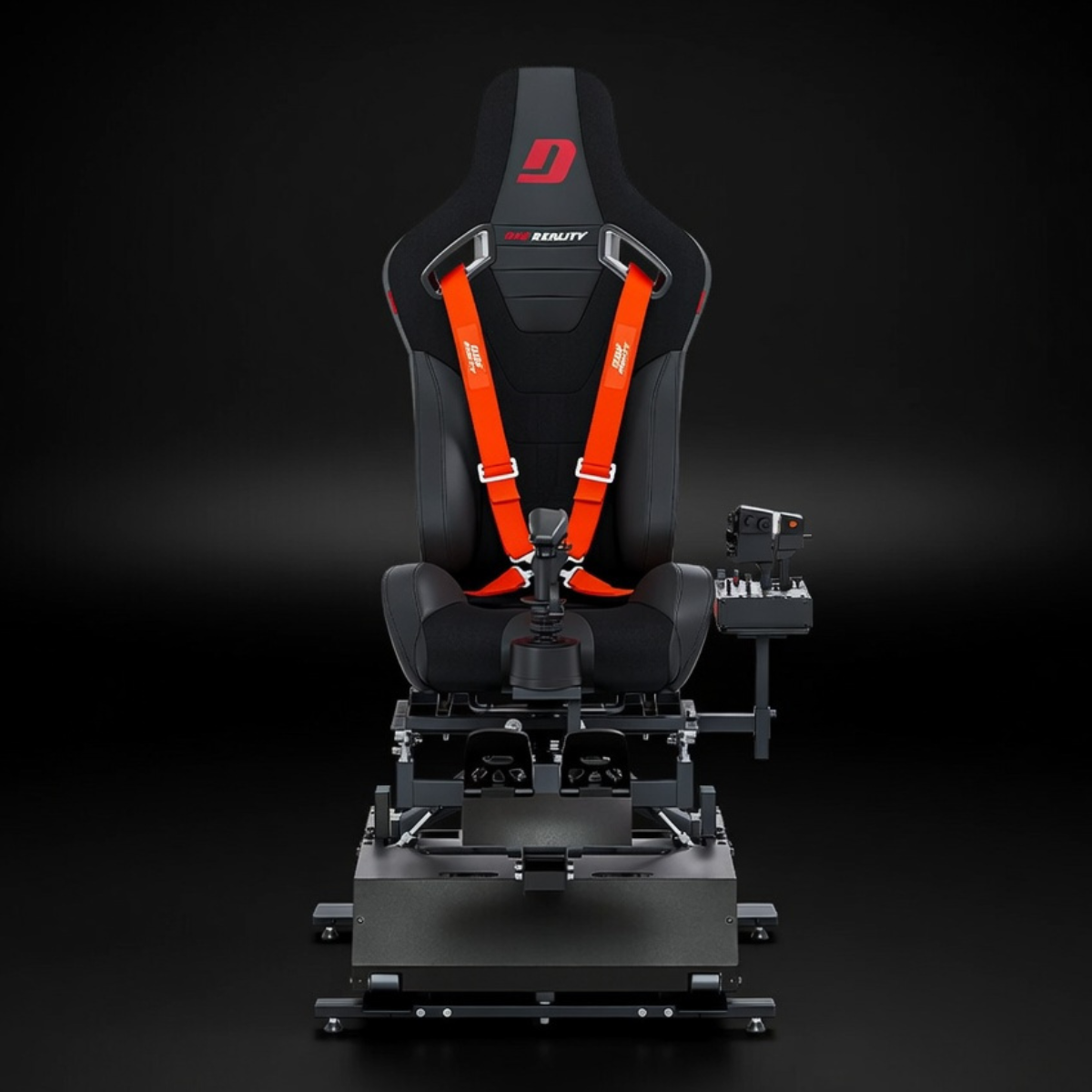

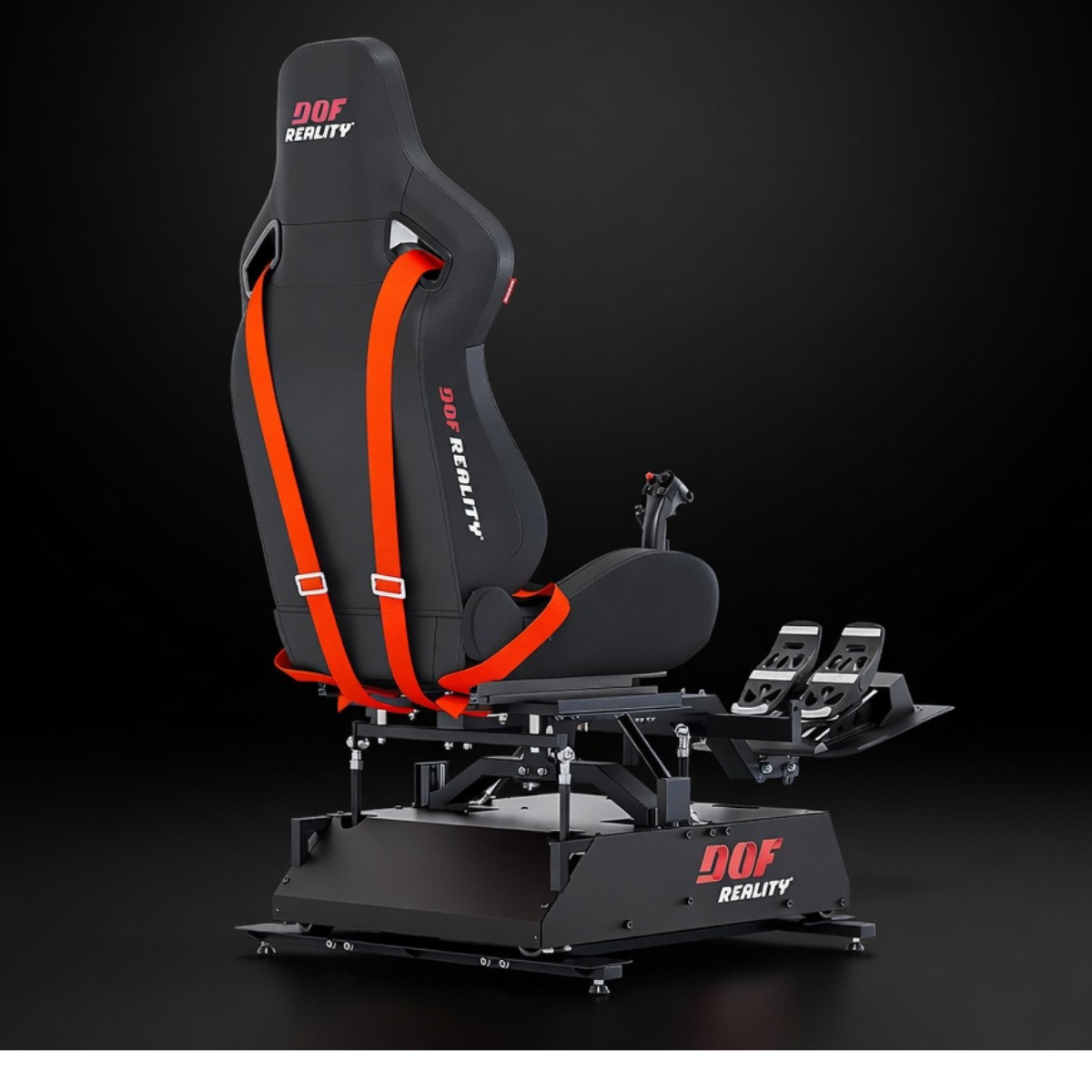

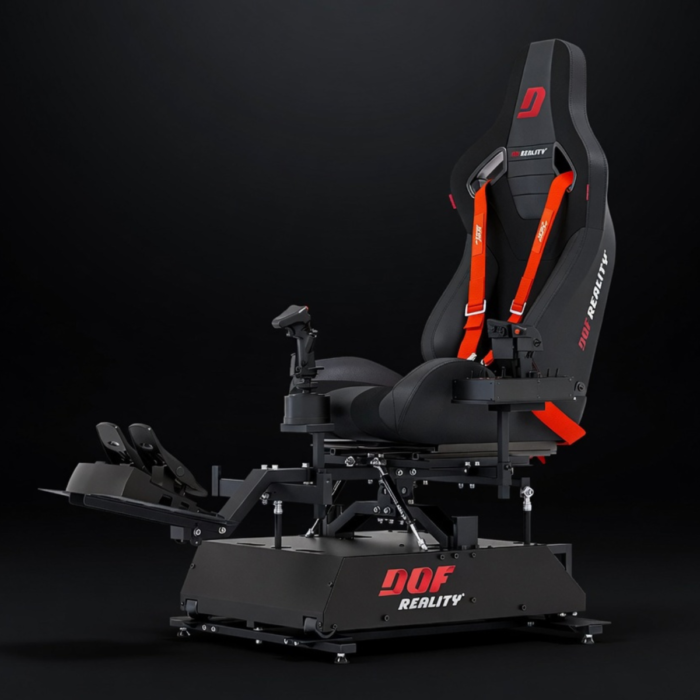

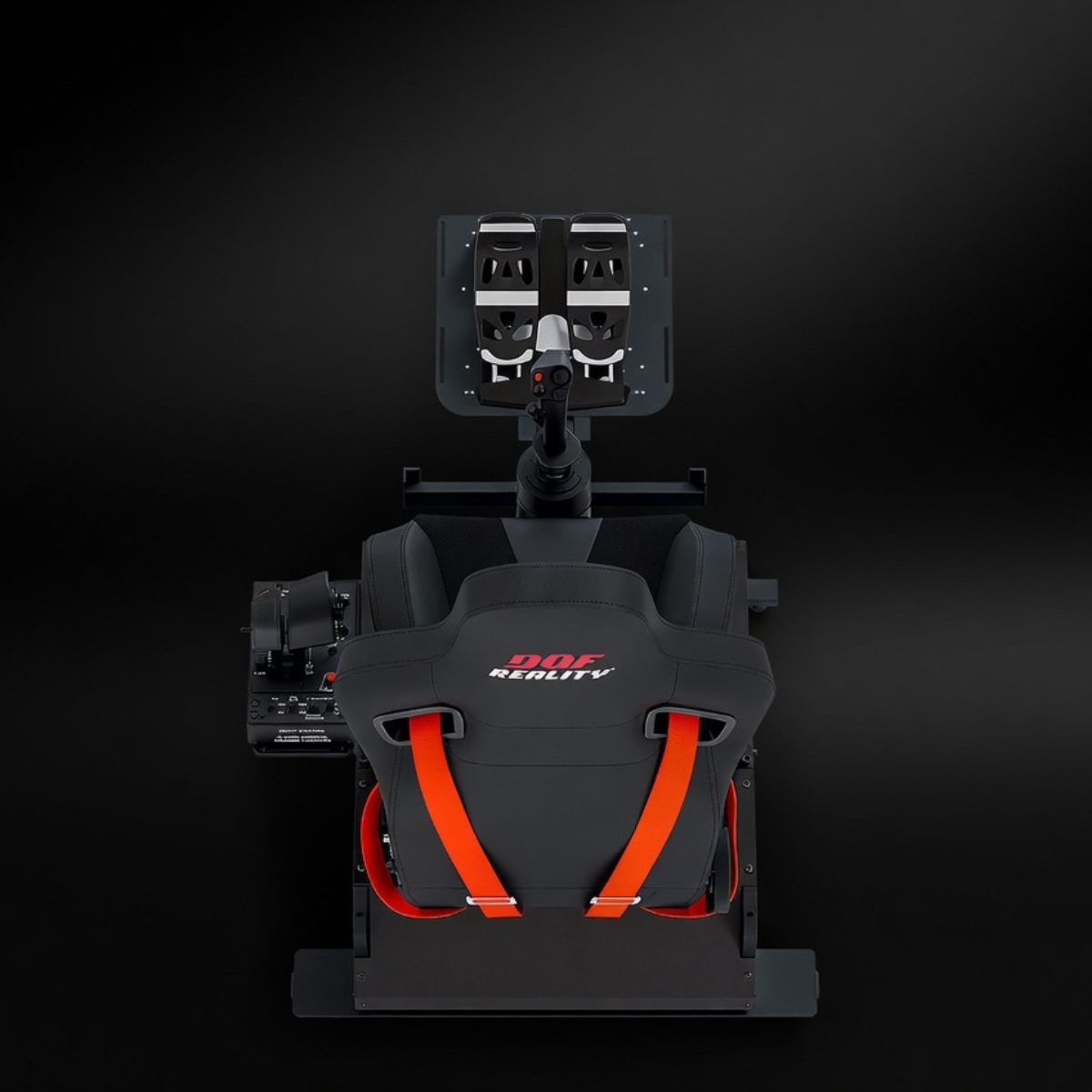

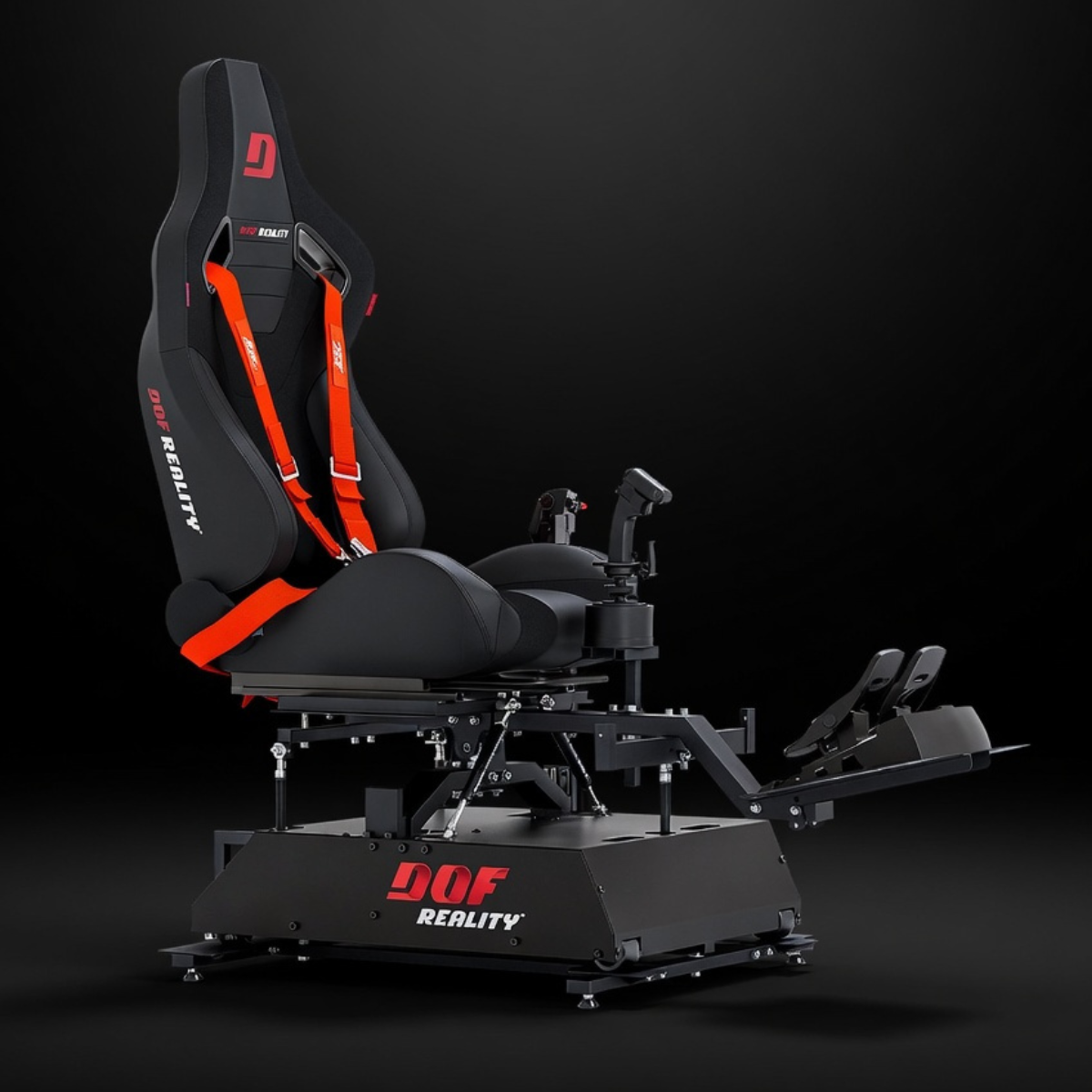

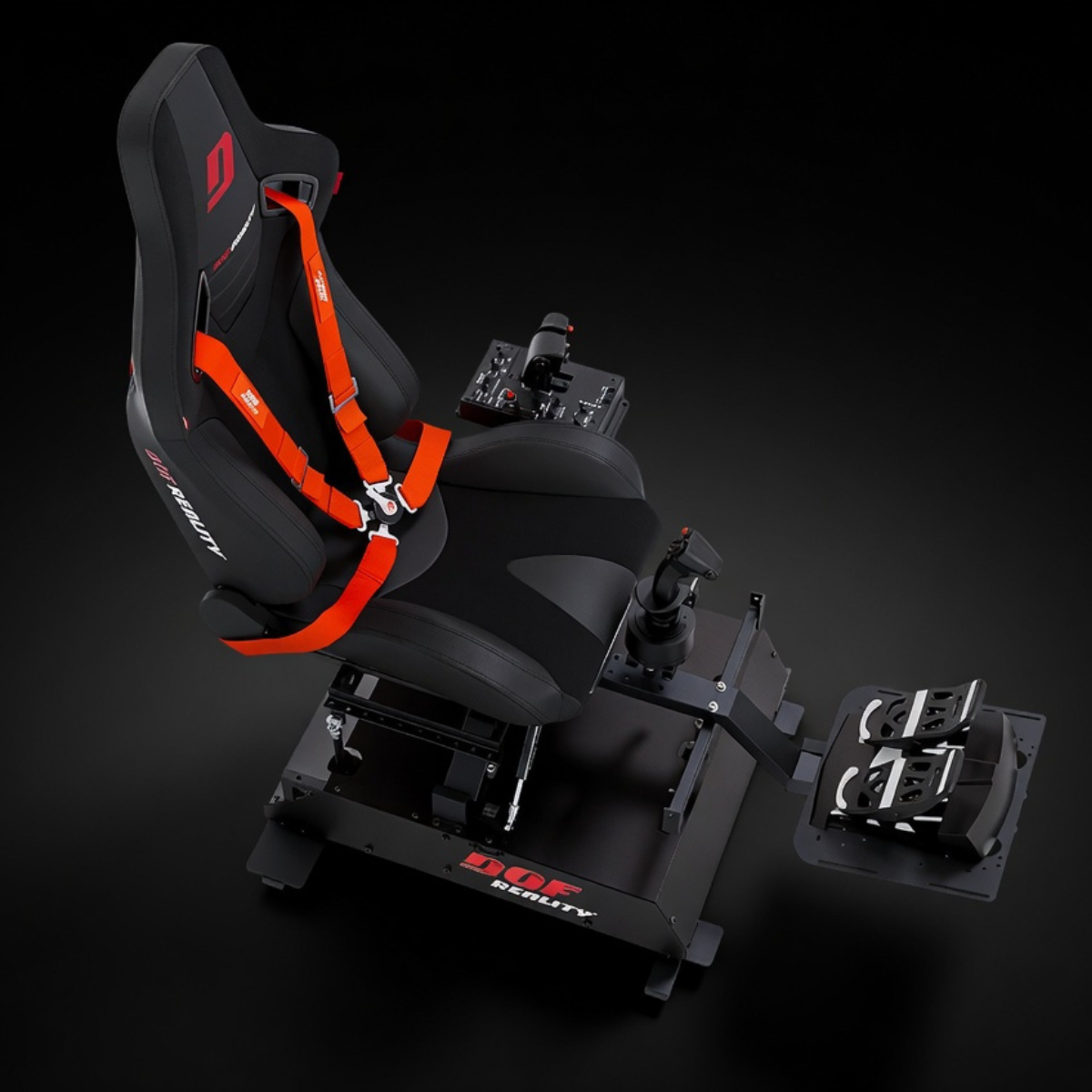

The full-motion design moves your entire cockpit — seat, monitor, cyclic, collective, throttle, pedals, and anti-torque pedals — together, simulating authentic g-forces through muscle pressure and body contact. Powered by highly customizable Sim Racing Studio (SRS) software, it delivers precise telemetry-based feedback for rotor torque, turbulence, ground effect, vibrations, and more.

Why It Stands Out

True 4-Axis Motion

4 DOF (Pitch + Roll + Yaw + Heave) with SFU gearboxes optimized for the slow, precise control needed in helicopter simulation.

Full Platform Motion

Moves the entire cockpit (seat, monitor, cyclic, collective, throttle, pedals, anti-torque pedals) together for authentic in-cockpit immersion and realistic g-force feedback.

Helicopter Optimized

Excellent for hover drift, tail rotor corrections, coordinated turns, descent, ground effect, and precise hovering.

Universal Compatibility

Powered by Sim Racing Studio (SRS), it supports DCS World helicopter modules, Microsoft Flight Simulator, X-Plane, and more via telemetry.

Built for Realism

Delivers outstanding realism for both training and recreational helicopter simulation with upgradability to H6.

What’s Included

Ready-to-Play Package

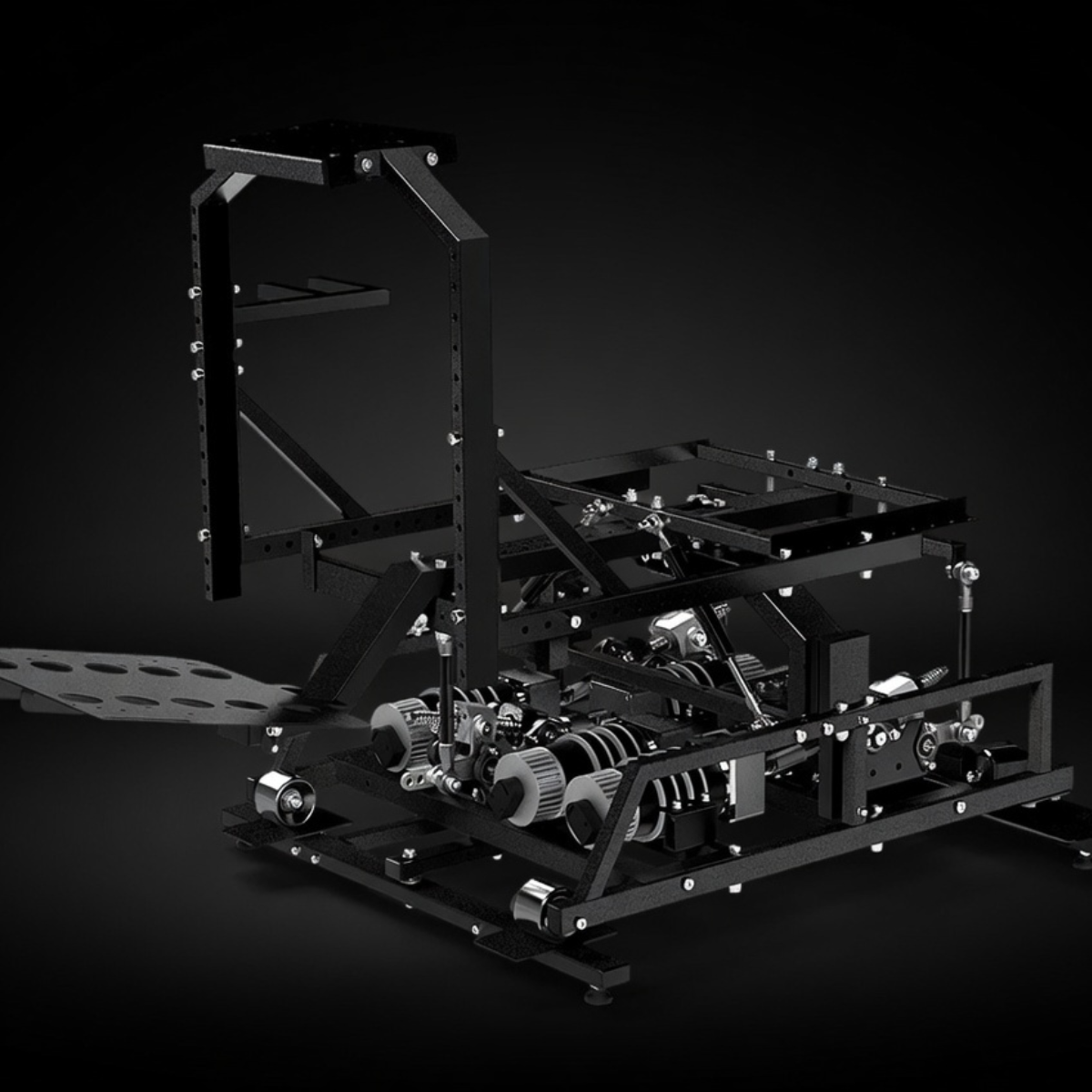

Rigid metal rig for normal & helicopter pose
Mounts for seat or sliding rails
Integrated power drive motors with SFU gearboxes
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (cyclic, collective, throttle, pedals, anti-torque pedals, etc.). Supports all major helicopter sim brands and types. Games/sim titles not included.

Specifications

Degrees of Freedom	4 DOF (Pitch + Roll + Yaw + Heave)
Full Platform Motion	Yes
Range of Motion	20°
Speed	50 cm/s (86°/s)
Torque	25 N/m
Acceleration	0.6G all directions
Power Consumption	750 Watt (peak)
Box Weight (Size)	1) 35kg (94 × 38 × 28cm) 2) 44kg (80 × 60 × 25cm)
Floor Footprint	3×5 ft, 2 ft H (100×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	330 lbs / 150 kg
Warranty	Full 1 year (extensions available)
Upgradable	To H6

Frequently Asked Questions

What makes the DOF Reality HERO H4 Helicopter Edition ideal for helicopter simulation?

The HERO H4 delivers true 4 DOF (Pitch + Roll + Yaw + Heave) with SFU gearboxes, optimized for the slow, precise control needed in helicopters — hover drift, tail rotor corrections, coordinated turns, descent, and ground effect.

Can the HERO H4 also be used for fixed-wing flight?

Yes — while optimized for helicopters, its 4-axis motion with Heave also performs excellently for fixed-wing flight, coordinated turns, turbulence, and general aviation training.

What cockpit components move on the HERO H4 Helicopter Edition?

The full-motion rig moves everything together — seat, monitor, cyclic, collective, throttle, pedals, and anti-torque pedals — for authentic in-cockpit immersion.

Which helicopter simulators are compatible with the HERO H4?

Powered by Sim Racing Studio (SRS), it supports DCS World helicopter modules, Microsoft Flight Simulator, X-Plane, and more via telemetry.

Is the HERO H4 suitable for professional helicopter training?

Yes — its smooth SFU motion, 4DOF with Heave, and robust build make it excellent for procedural training and muscle memory development.

How much space is required for the DOF Reality HERO H4 Helicopter Edition?

Footprint is approximately 100 × 150 cm (3 × 5 ft) with 60 cm height. Allow extra clearance for full motion travel.

What warranty and support come with the DOF Reality HERO H4 Helicopter Edition?

Includes a full 1-year warranty with optional extension. 24/7 global support ensures quick help with setup, tuning, or issues.

Shipping & Returns

Shipping Policy

As an Official DOF Reality Partner, we offer all-in pricing with free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started. Delays over 30 days past promised date allow full refund.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

Official DOF Reality guides include step-by-step assembly, software setup, tuning, VR motion compensation, troubleshooting, and technical specs.

DOF Reality HERO H4 Helicopter Edition 4-axis helicopter motion simulator platform

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your H4 platform.

Download Full Official Manual (PDF)
