DOF Reality Professional 2-Axis Flight Motion Simulator Platform - P2

DOF Reality Professional 2-Axis Flight Motion Simulator Platform - P2 - Image 3

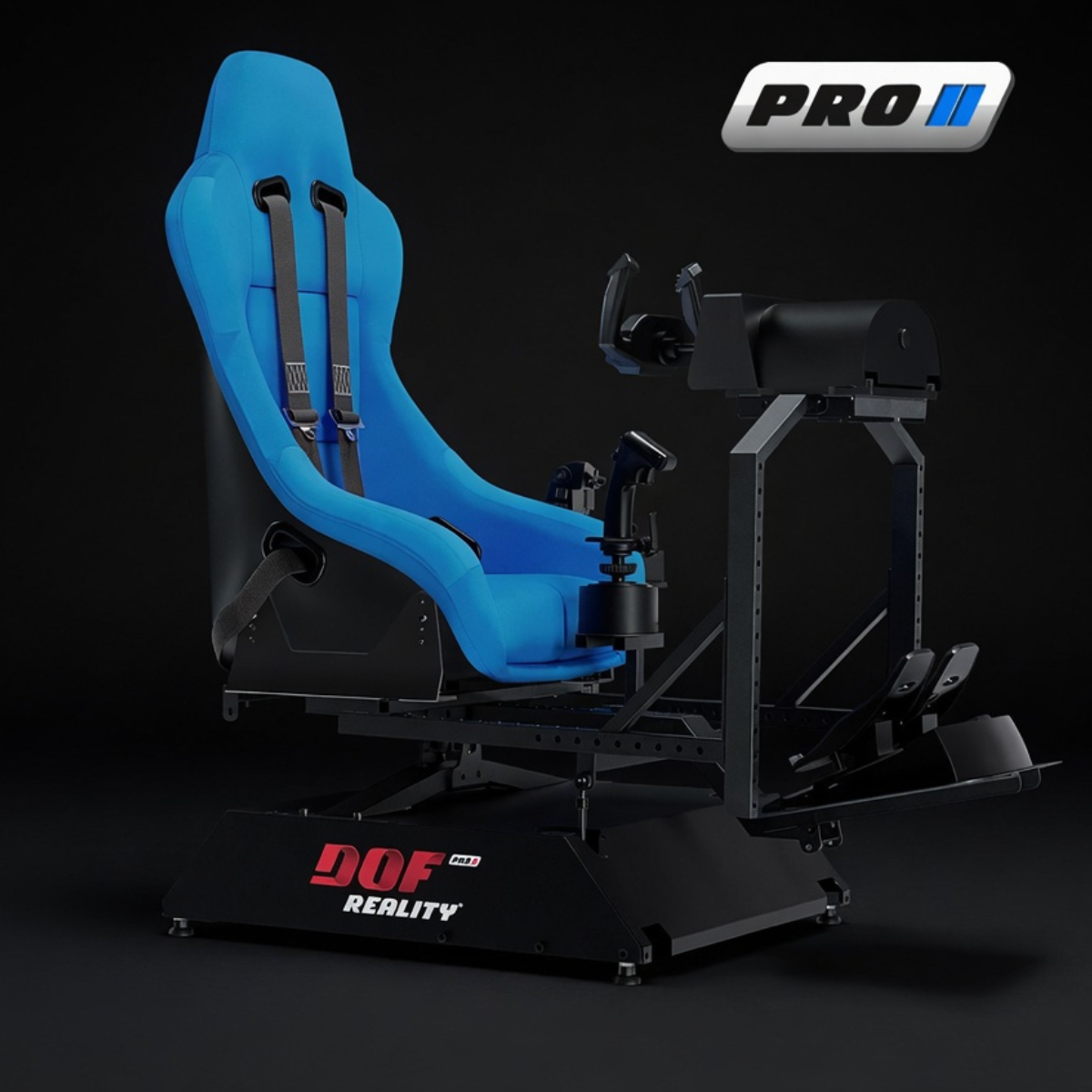

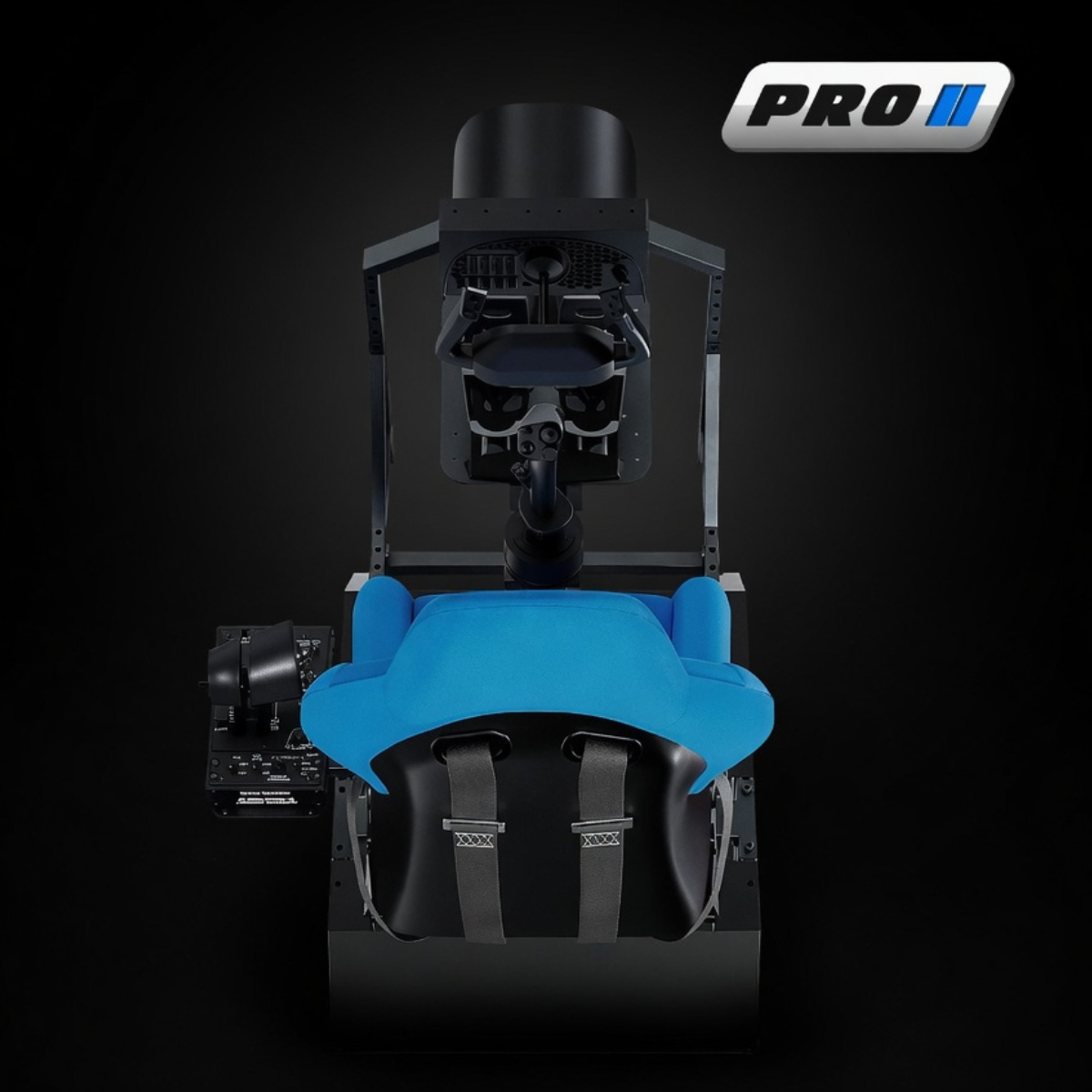

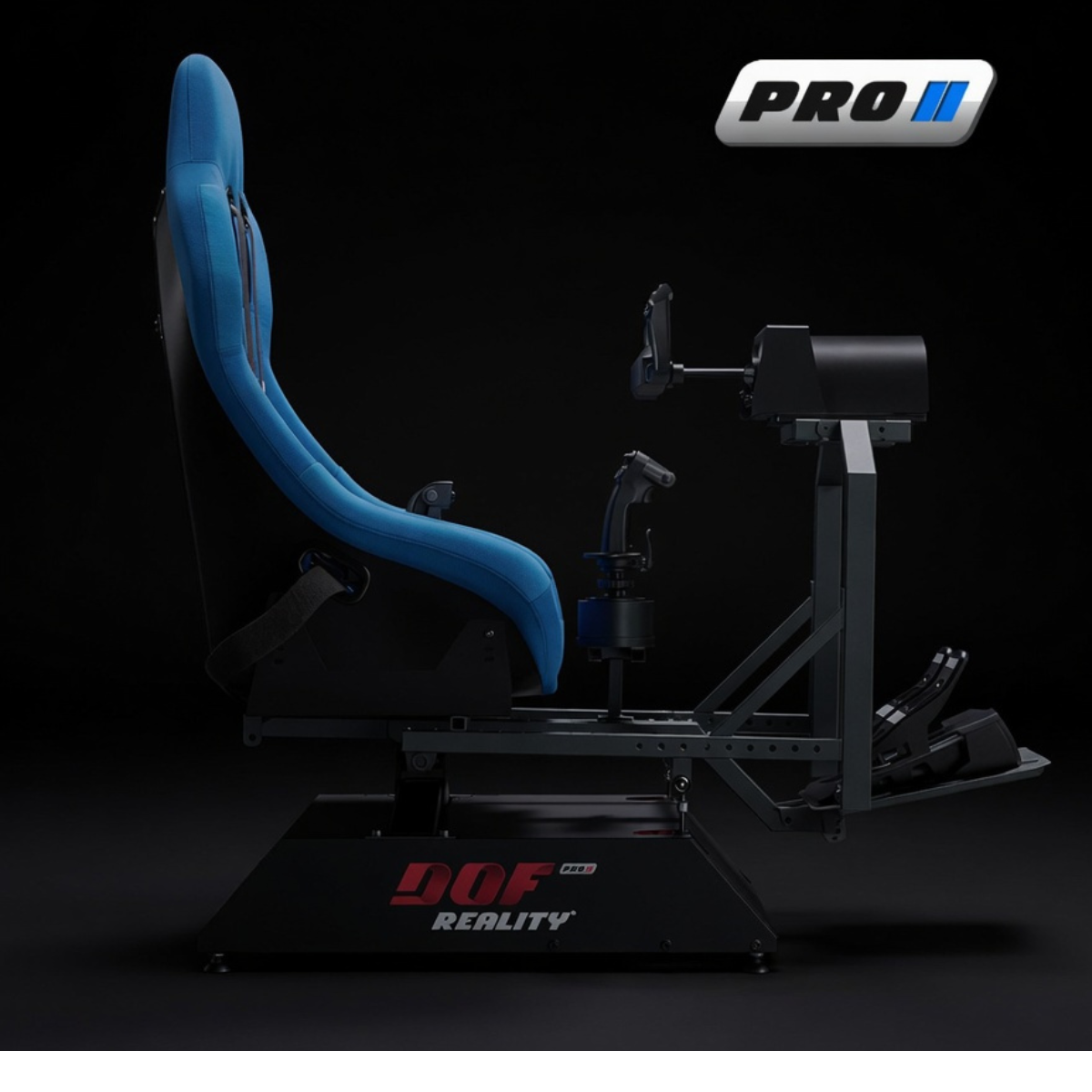

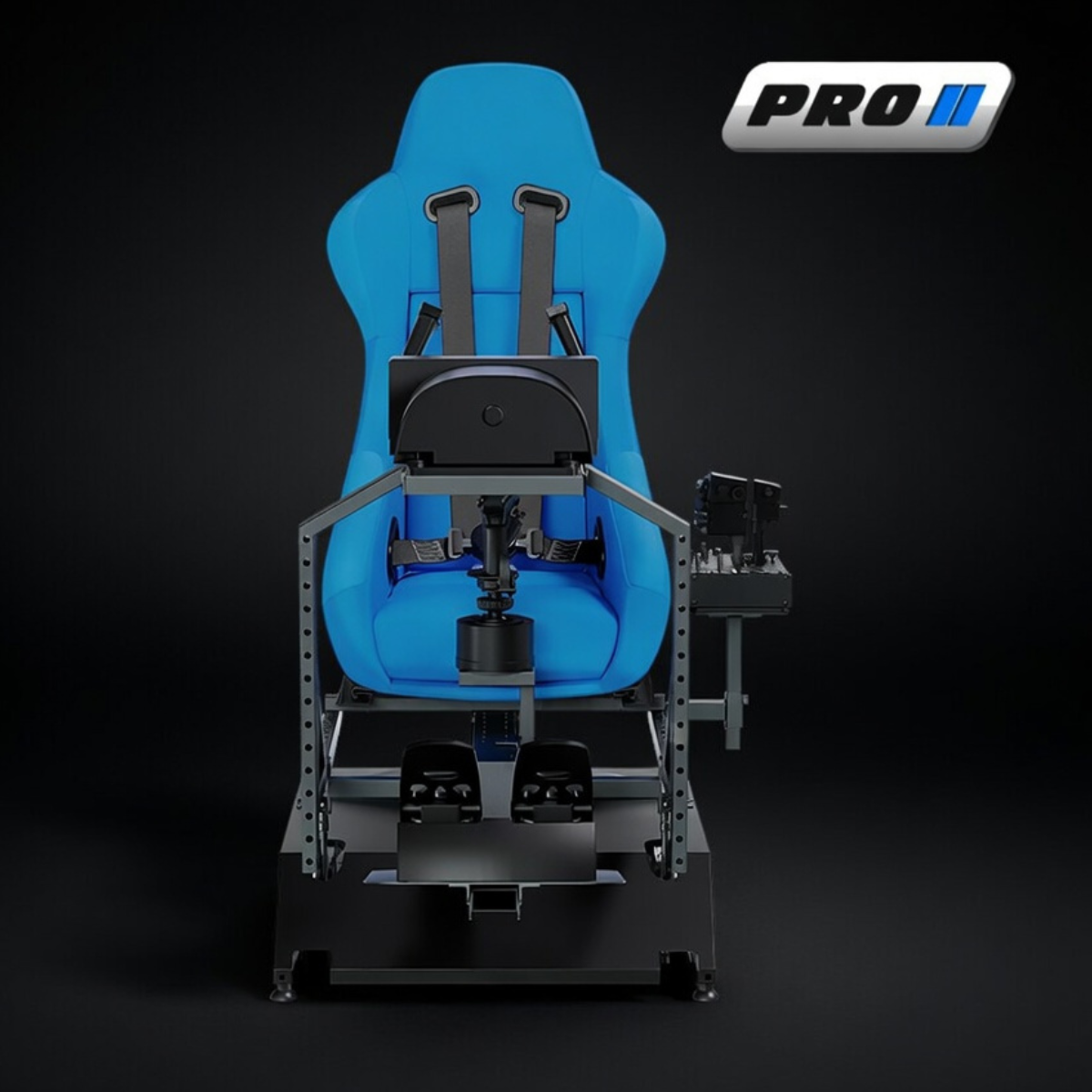

DOF Reality Professional 2-Axis Flight Motion Simulator Platform – P2

Name: DOF Reality Professional 2-Axis Flight Motion Simulator Platform - P2 - towertotower.co.uk
SKU: DOF-P2eF-PRO
Price: 2365.74 GBP
Availability: InStock

Original price was: £4,731.48.Current price is: £2,365.74.

Add to compare

Add to wishlist

SKU: DOF-P2eF-PRO Tags: 2-Axis Flight Simulators, Flight Simulators, Motion Simulator Platforms

Description

The DOF Reality PRO 2 is the professional-grade 2-axis motion simulator platform for businesses and enthusiasts seeking the ultimate racing, flight, or helicopter simulator experience. It delivers top-tier design, precision engineering, superior build quality, and unmatched performance with no compromises across disciplines.

The key advantage is the additional gearbox on each motor, providing extra smoothness and precision for the slow, nuanced motions essential in flight and helicopter profiles while maintaining sharp, responsive feedback for high-speed racing dynamics.

Just like in a genuine vehicle or cockpit, the full-motion design moves your entire setup — seat, monitor, wheel/pedals, joystick/yoke, collective/throttle — together, simulating authentic g-forces through muscle pressure and body contact. Powered by highly customizable Sim Racing Studio (SRS) software, it delivers precise telemetry-based feedback for road bumps, texture, vibrations, gear changes, turbulence, rotor torque, collisions, and more.

Why It Stands Out

Versatile 2-Axis Full Motion

Pitch + Roll with full-rig motion delivers authentic acceleration, braking, cornering, and low-speed precision across racing, fixed-wing flight, and helicopter simulation.

Gearbox-Enhanced Smoothness

Additional gearboxes on each motor provide extra smoothness at low speeds — ideal for flight/helicopter hover and transitions — while keeping crisp response for racing.

Full Cockpit Motion

The entire rig moves together — seat, monitor, wheel/pedals, joystick/yoke, collective/throttle — for cohesive, in-cockpit g-force feedback.

Multi-Discipline Performance

Performs flawlessly in racing (traction loss, drifts), fixed-wing flight (climbs/descents), and helicopter (hover, yaw, rotor effects) on one platform.

Professional & Upgradable

Robust commercial-grade construction with high pilot weight capacity and official upgrade path to P3 or P6 for future-proofing.

What’s Included

Ready-to-Play Package

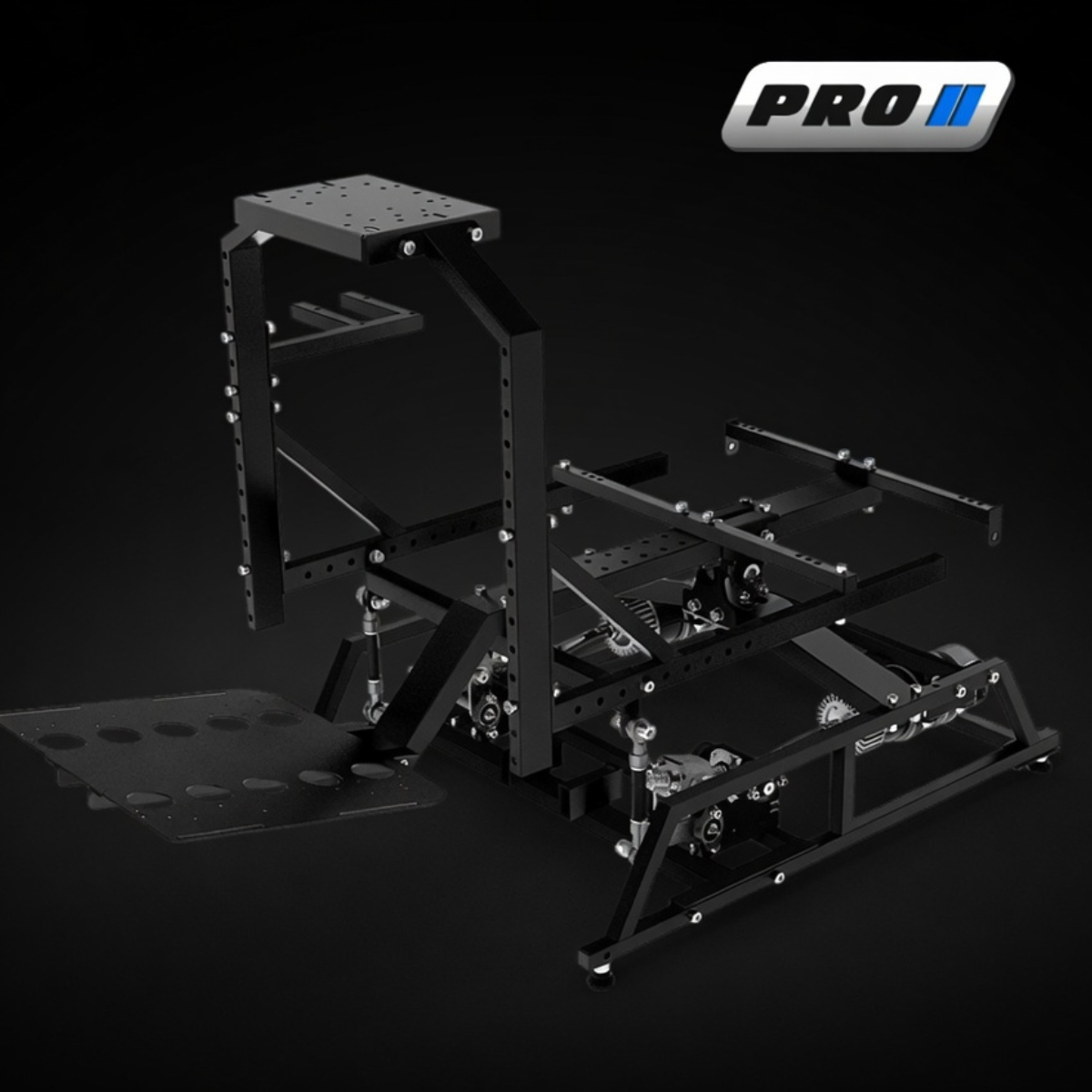

Rigid metal rig for normal & F1 pose
Mounts for seat or sliding rails
Integrated power drive motors with gearbox enhancement
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (wheel, pedals, yoke, collective, throttle, etc.). The PRO 2 supports all major brands and types.

Specifications

Degrees of Freedom	2 DOF (Pitch + Roll)
Full Platform Motion	Yes
Range of Motion	20°
Speed	75 cm/s (105°/s)
Torque	28 N/m
Acceleration	0.75G T / 0.5G L
Power Consumption	500 Watt (peak)
Box Weight (Size)	1) 29kg (94 × 38 × 28cm) 2) 29kg (80 × 60 × 25cm)
Floor Footprint	2×5 ft, 2 ft H (59×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	440 lbs / 200 kg
Warranty	Full 1 year (extensions available)
Upgradable	Compatible with P3 / P6 upgrade

Frequently Asked Questions

What makes the DOF Reality PRO 2 ideal for business and professional simulator use?

The PRO 2 is built for continuous operation with industrial-grade durability, gearbox-enhanced smoothness for flight/helicopter precision, full-rig motion, and 24/7 global support — perfect for training centers, arcades, events, and enterprise setups.

How does the PRO 2 handle flight, helicopter, and racing simulations?

With 2DOF pitch + roll and extra gearbox smoothness, it excels in slow-motion flight/helicopter cues (turbulence, hover) while delivering fast, accurate racing feedback (acceleration, braking).

What cockpit components move on the PRO 2 professional motion platform?

Full-motion rig moves everything together — seat, monitor, wheel/pedals, yoke/joystick, collective/throttle — for realistic g-force simulation through body pressure points.

Is the PRO 2 compatible with major sim software and titles?

Yes — integrated with Sim Racing Studio (SRS), it supports telemetry from popular titles like iRacing, Assetto Corsa, Microsoft Flight Simulator, X-Plane, DCS World, and more.

Can businesses use the PRO 2 with consoles or VR for training/entertainment?

PC is standard for full SRS features. Add the optional MagicBox for console motion support. It’s highly VR-ready — mount tracking sensors to the rig for seamless immersion.

How much space is required for the DOF Reality PRO 2?

Compact footprint: approximately 59 × 150 cm (2 × 5 ft) with 60 cm height. Allow extra clearance for motion travel, entry/exit, and peripherals.

Is the PRO 2 upgradable for more axes or advanced use?

Yes — official upgrade paths to P3 (3DOF) or P6 (6DOF) allow scaling as your business needs grow.

What warranty and support are provided for the PRO 2?

Includes a full 1-year warranty with optional extension. 24/7 global support ensures quick resolution for business-critical setups.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the current SFU + kardan-joints version, software setup, tuning, VR motion compensation, troubleshooting, and technical specs.

DOF Reality PRO 2 2-axis motion simulator platform for racing flight and helicopter

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your PRO 2 platform (SFU gearbox + kardan joints configuration).

Download Full Official Manual (PDF)
