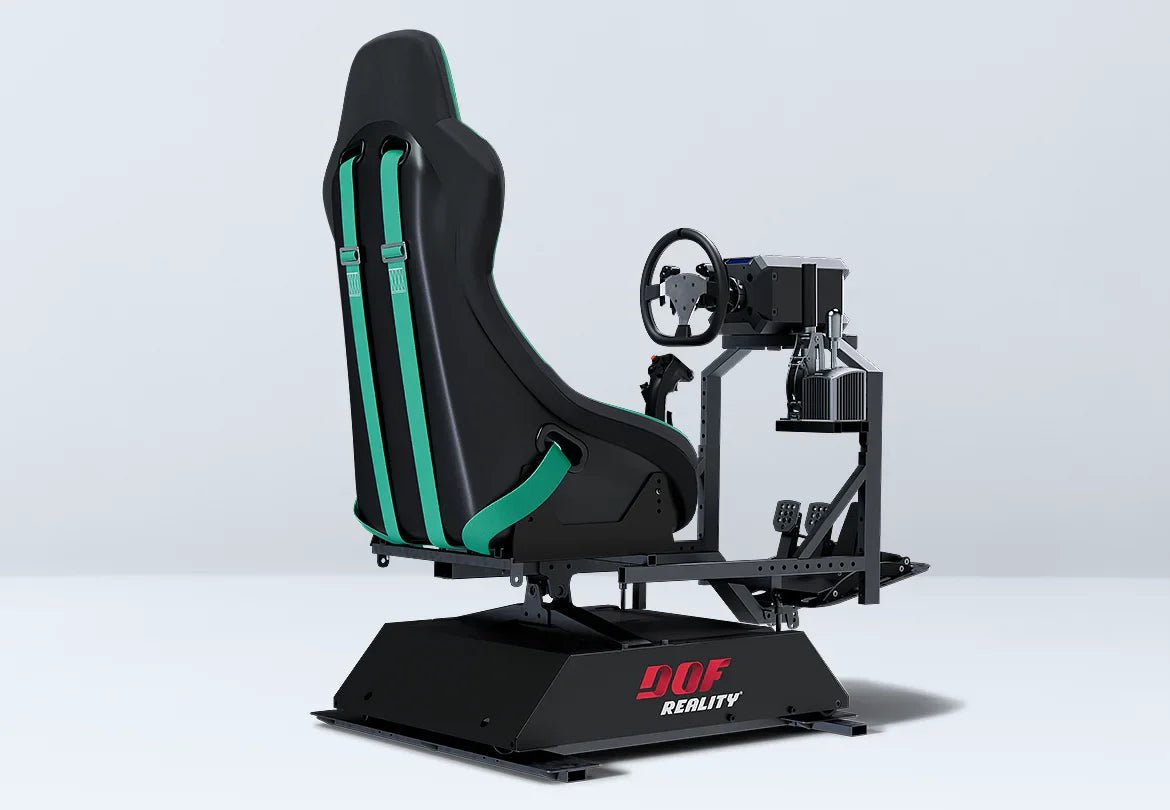

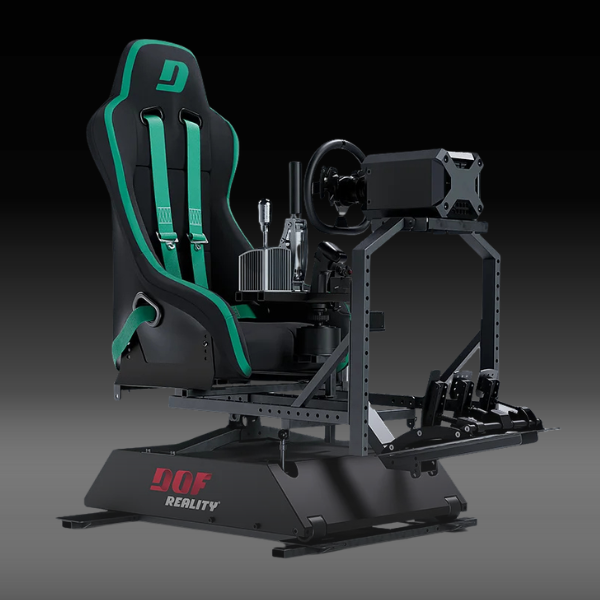

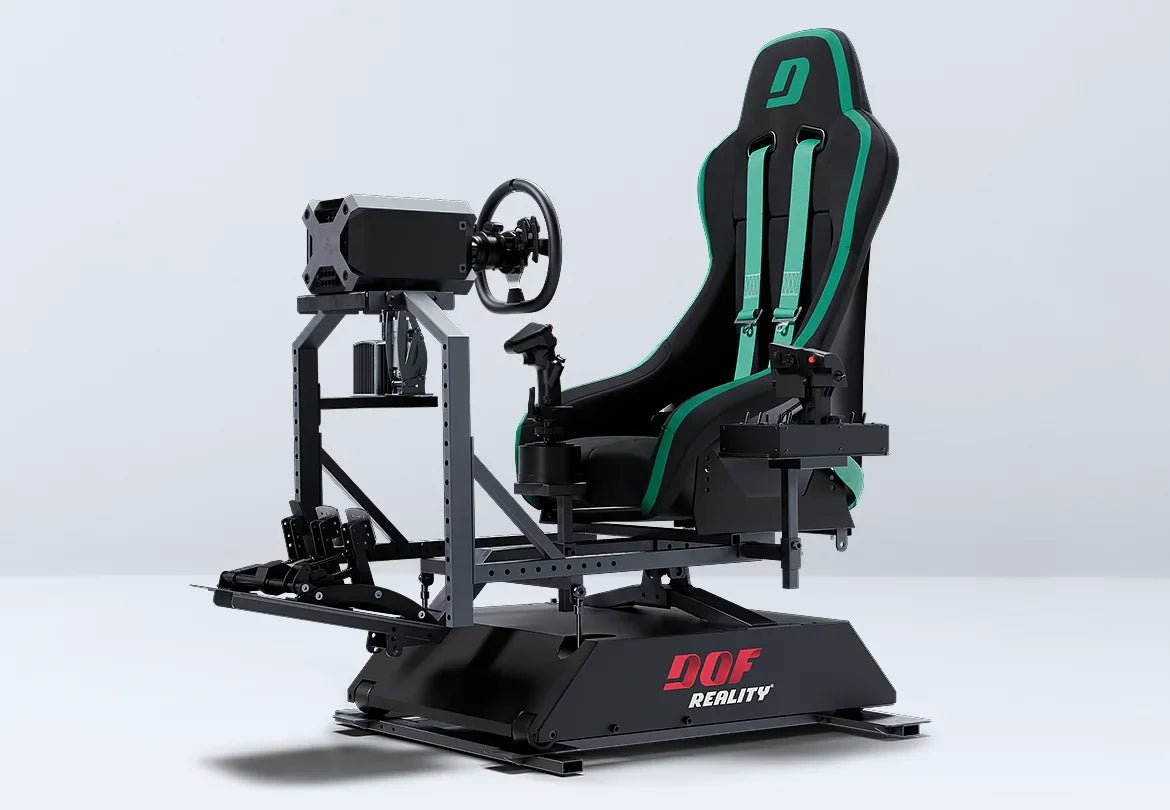

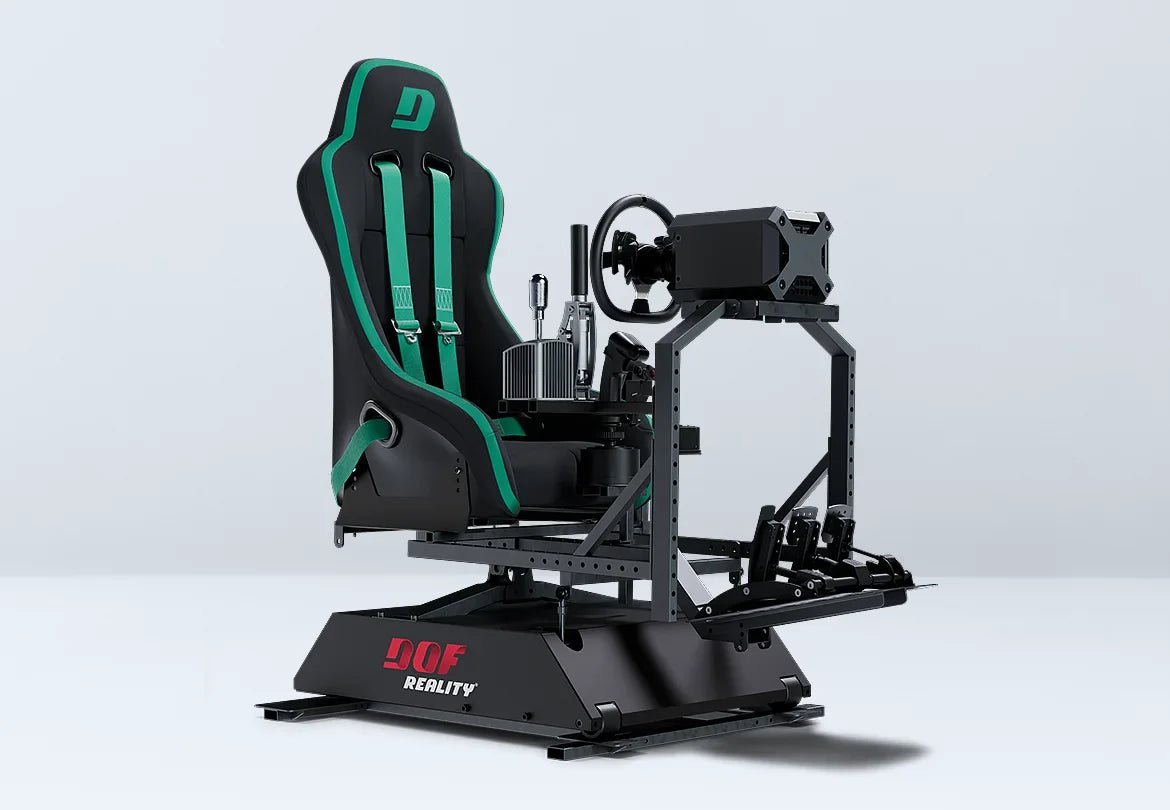

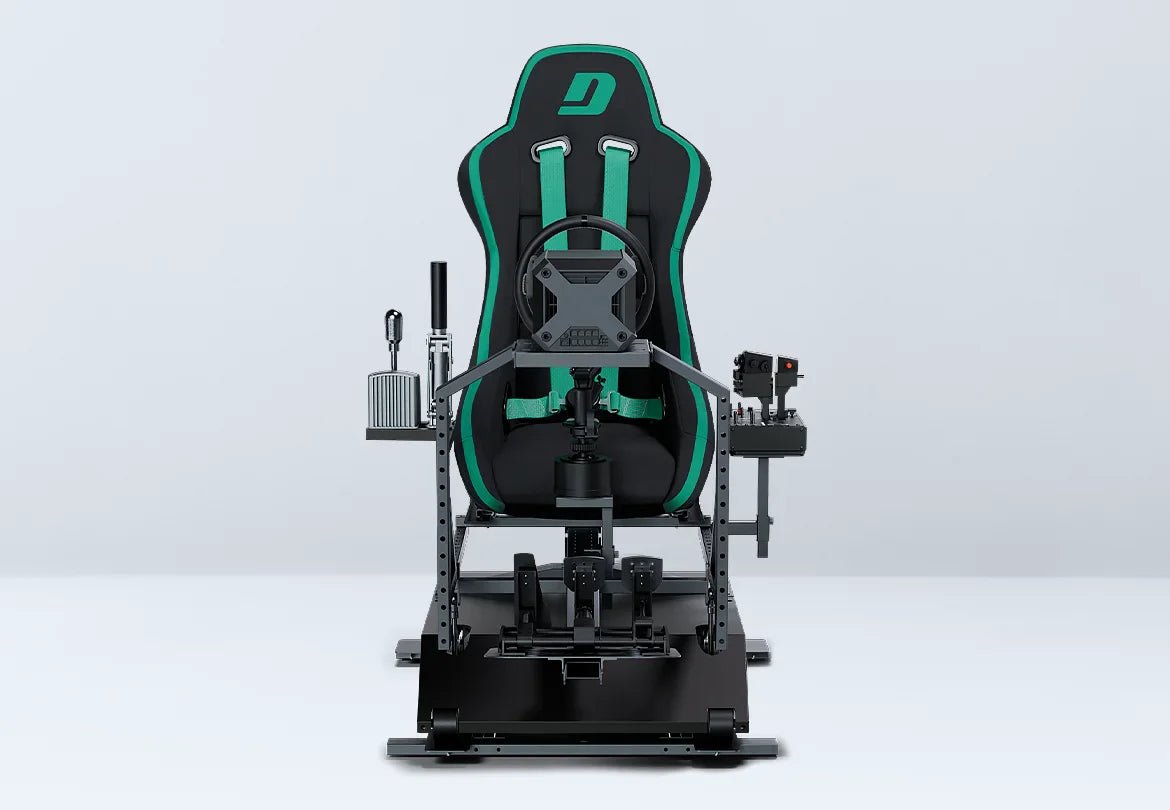

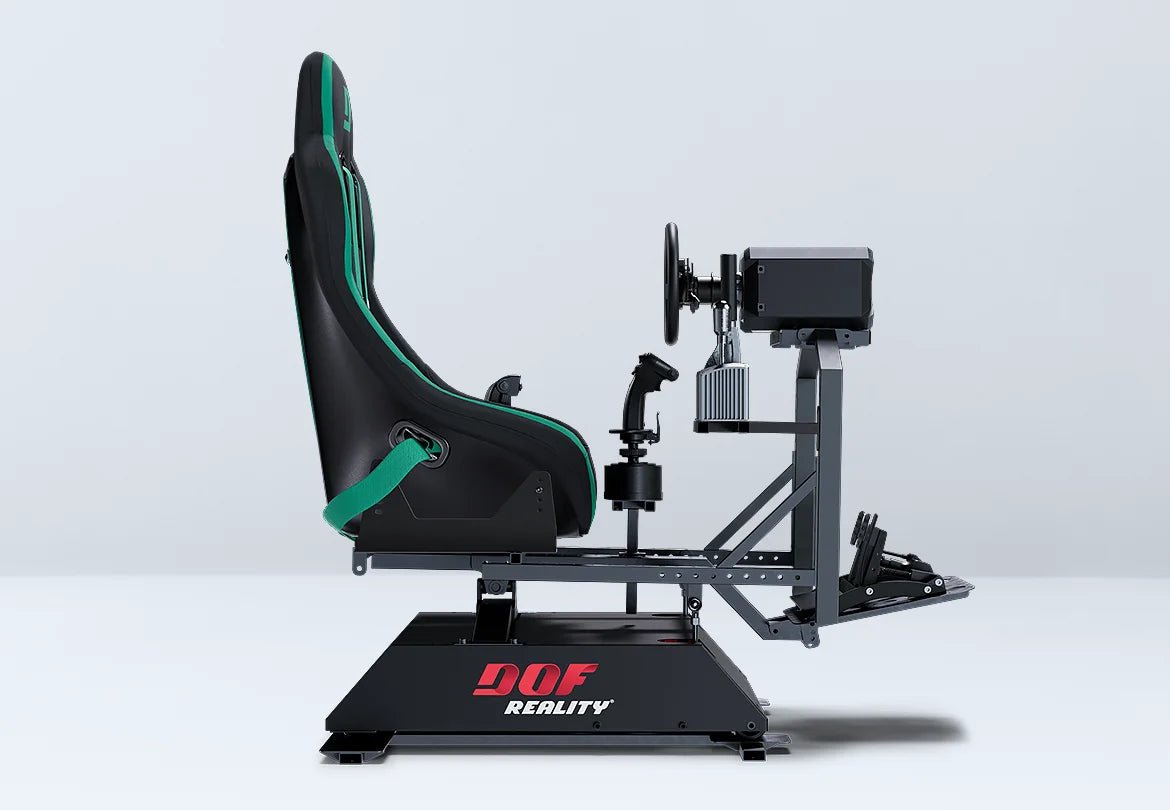

DOF Reality HERO 3-Axis Universal Motion Simulator Platform - H3 - Image 1

DOF Reality HERO 3-Axis Universal Motion Simulator Platform - H3 - Image 2

Click to enlarge

DOF Reality HERO 3-Axis Universal Motion Simulator Platform - H3 - Image 3

DOF Reality HERO 3-Axis Universal Motion Simulator Platform - H3 - Image 4

DOF Reality HERO 3-Axis Universal Motion Simulator Platform – H3

Name: DOF Reality HERO 3-Axis Universal Motion Simulator Platform - H3 - towertotower.co.uk
SKU: DOF-H3-HERO
Price: 1719.95 GBP
Availability: InStock

Original price was: £3,439.90.Current price is: £1,719.95.

Add to compare

Add to wishlist

SKU: DOF-H3-HERO Tags: 3-Axis Universal Simulators, Motion Simulator Platforms, Universal Motion Simulators

Description

The DOF Reality HERO H3 is a high-performance 3-axis universal motion simulator platform built for serious sim racers, flight enthusiasts, helicopter pilots, and multi-discipline users. It delivers unmatched realism, responsiveness, and versatility across sim racing, fixed-wing flight, and helicopter simulation in one affordable, upgradeable platform.

Featuring three degrees of freedom — pitch, roll, and yaw with rear traction loss — the HERO H3 replicates real-world dynamics like acceleration, braking, understeer/oversteer, climbs/descents, hover drift, and tail rotor feedback. The precision SFU gearboxes provide ultra-smooth, slow-motion accuracy, making it ideal for delicate helicopter controls while delivering crisp, high-speed feedback for racing and fixed-wing maneuvers.

As a true full-rig motion design, the entire cockpit moves as one unit — seat, monitor, pedals, wheel/yoke/joystick, collective, throttle, and controls — for authentic g-force simulation through body pressure and muscle tension. Integrated with Sim Racing Studio (SRS), the platform translates real-time telemetry into vivid effects: road texture, gear shifts, turbulence, rotor torque, ground effect, and collision impacts.

Whether you’re pushing limits in iRacing/Assetto Corsa, mastering Microsoft Flight Simulator/X-Plane, or training in DCS/Helicopter sims, the HERO H3 is the ultimate universal 3DOF motion platform — backed by global support, a full warranty, and easy upgrade path to 6DOF.

Why It Stands Out

True 3-Axis Universal Motion

Pitch + Roll + Yaw with rear traction loss delivers realistic acceleration, braking, cornering, climbs, descents, hover drift, and tail rotor feedback across racing, flight, and helicopter simulation.

SFU Gearbox Smoothness

Extra-smooth gearing provides exceptional low-speed precision for helicopter maneuvers while maintaining crisp, powerful response for high-speed racing and fixed-wing flight.

Full-Rig Cockpit Movement

The entire cockpit — seat, monitor, pedals, wheel/yoke/joystick, collective, throttle, and controls — moves together for cohesive, in-cockpit g-force feedback.

SRS Telemetry Integration

Sim Racing Studio converts real-time data into vivid physical cues: road texture, gear shifts, turbulence, rotor torque, ground effect, and collision impacts.

Upgradeable & Versatile

Excellent value as a 3DOF platform with a clear upgrade path to the full 6DOF H6 when you’re ready for even more immersion.

What’s Included

Ready-to-Play Package

Rigid metal rig for normal & F1 pose
Mounts for seat or sliding rails
Integrated power drive motors with SFU gearboxes
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (wheel, pedals, yoke, collective, throttle, joystick, etc.). Supports all major brands and types.

Specifications

Degrees of Freedom	3 DOF (Pitch + Roll + Yaw/Rear Traction Loss)
Full Platform Motion	Yes
Range of Motion	20°
Speed	50 cm/s (86°/s)
Torque	25 N/m
Acceleration	0.7G T / 0.5G L
Power Consumption	750 Watt (peak)
Box Weight (Size)	1) 28kg (90 x 33 x 20cm) 2) 29.97kg (60 x 40 x 30cm)
Floor Footprint	3×5 ft, 2 ft H (100×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	330 lbs / 150 kg
Warranty	Full 1 year (extensions available)
Upgradable	Compatible with H6 upgrade

Frequently Asked Questions

What makes the DOF Reality HERO H3 the best universal 3DOF motion simulator for racing, flight, and helicopter sims?

The HERO H3 combines pitch, roll, yaw, and rear traction loss with SFU gearboxes for smooth precision across all disciplines — excelling in racing (understeer/oversteer), fixed-wing flight, and helicopter hover/yaw without compromises or hardware changes.

Which parts of my cockpit move on the HERO H3 universal platform?

This is a full-rig motion system: the entire setup — seat, monitor, pedals, wheel/yoke/joystick, collective, throttle — moves together for cohesive, in-cockpit immersion.

What simulators are compatible with the DOF Reality HERO H3 for racing, flight, and helicopter?

Powered by Sim Racing Studio (SRS), it supports major PC titles like iRacing, Assetto Corsa, rFactor 2, Microsoft Flight Simulator, X-Plane, DCS World, and more via telemetry. Compatibility expands regularly — share your main titles for setup advice.

Can I use the HERO H3 universal motion platform with PlayStation or Xbox consoles?

PC is standard for full SRS features. For console motion in supported games, add the optional MagicBox — it handles motion only while your peripherals connect directly to the console.

Is the HERO H3 suitable for professional training or multi-use home setups in 2026?

Yes — its robust build, smooth gearboxes, and versatility make it popular for flight/helicopter training and serious sim racing. For certified programs, check local requirements; for home, it offers excellent value with upgrade potential.

How much space does the DOF Reality HERO H3 universal platform require?

Footprint is ~ 100 × 150 cm (3 × 5 ft) with 60 cm height. Allow 50-100 cm extra clearance for motion travel, entry/exit, monitor, and cables.

Can the HERO H3 be upgraded to more degrees of freedom later?

Absolutely — official upgrade kit to the full 6DOF H6 model adds surge, sway, and heave for even greater immersion when ready.

Does the HERO H3 work well with VR headsets for sim racing and flight simulation?

Yes — full-platform motion enhances VR dramatically. Mount tracking sensors to the rig or use software compensation for smooth, low-nausea experiences across all sim types.

What warranty and support come with the DOF Reality HERO H3?

Includes a full 1-year warranty with optional extension. 24/7 global support from DOF Reality ensures quick help with setup, tuning, or issues.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the 6 DOF platform, software setup, tuning, VR motion compensation, troubleshooting, and technical specifications.

DOF Reality HERO H3 3-axis universal motion simulator platform for sim racing flight and helicopter

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your H3 platform.

Download Full Official Manual (PDF)
