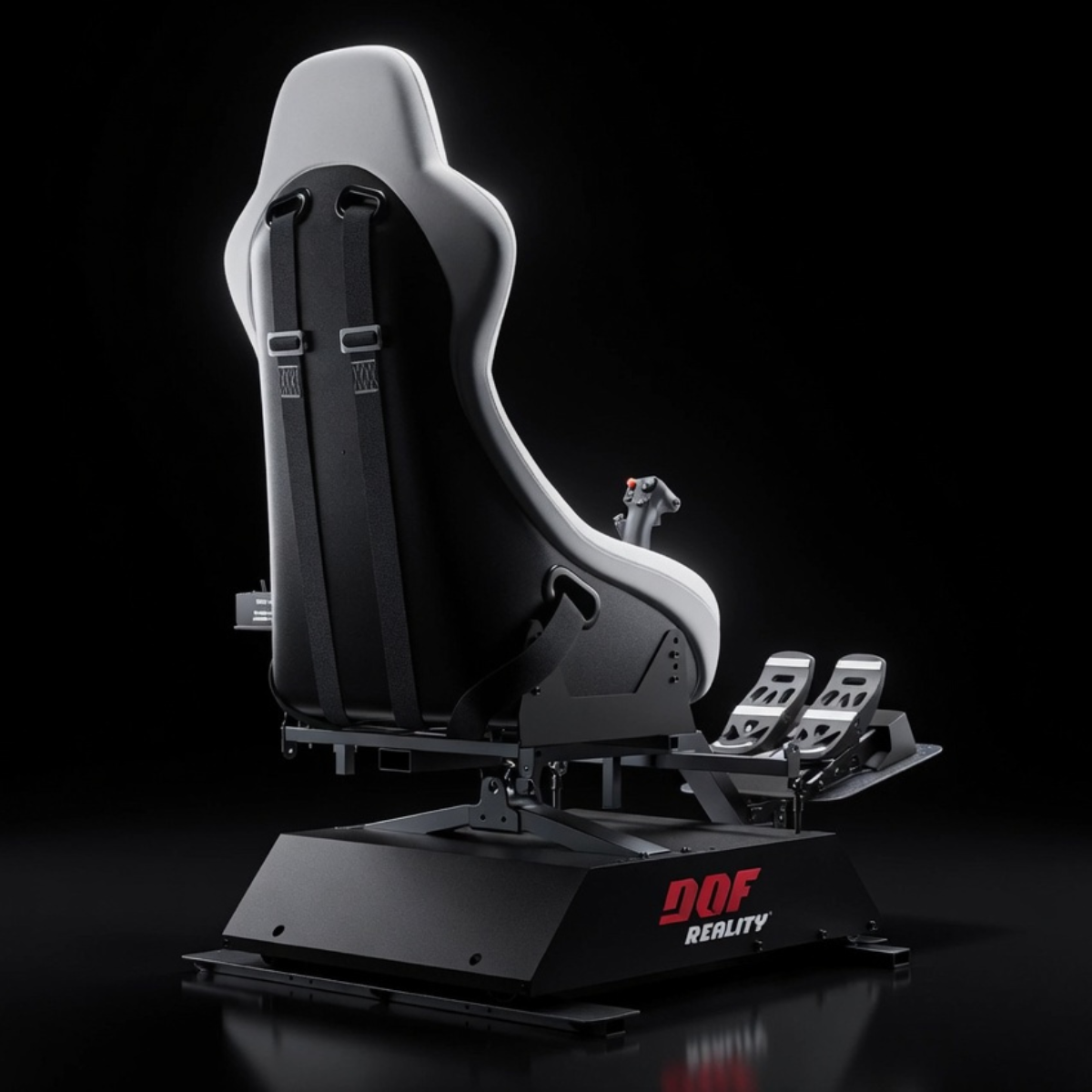

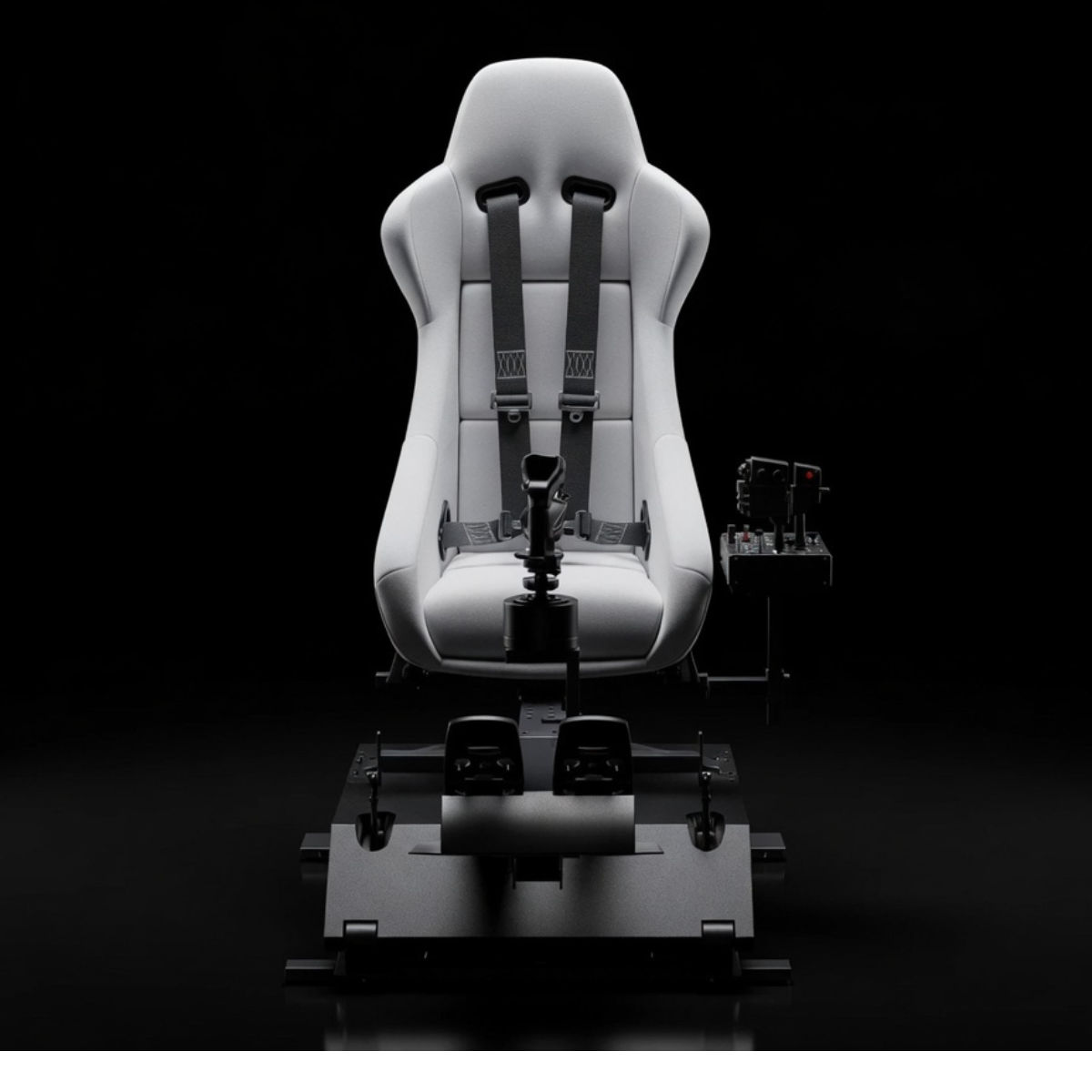

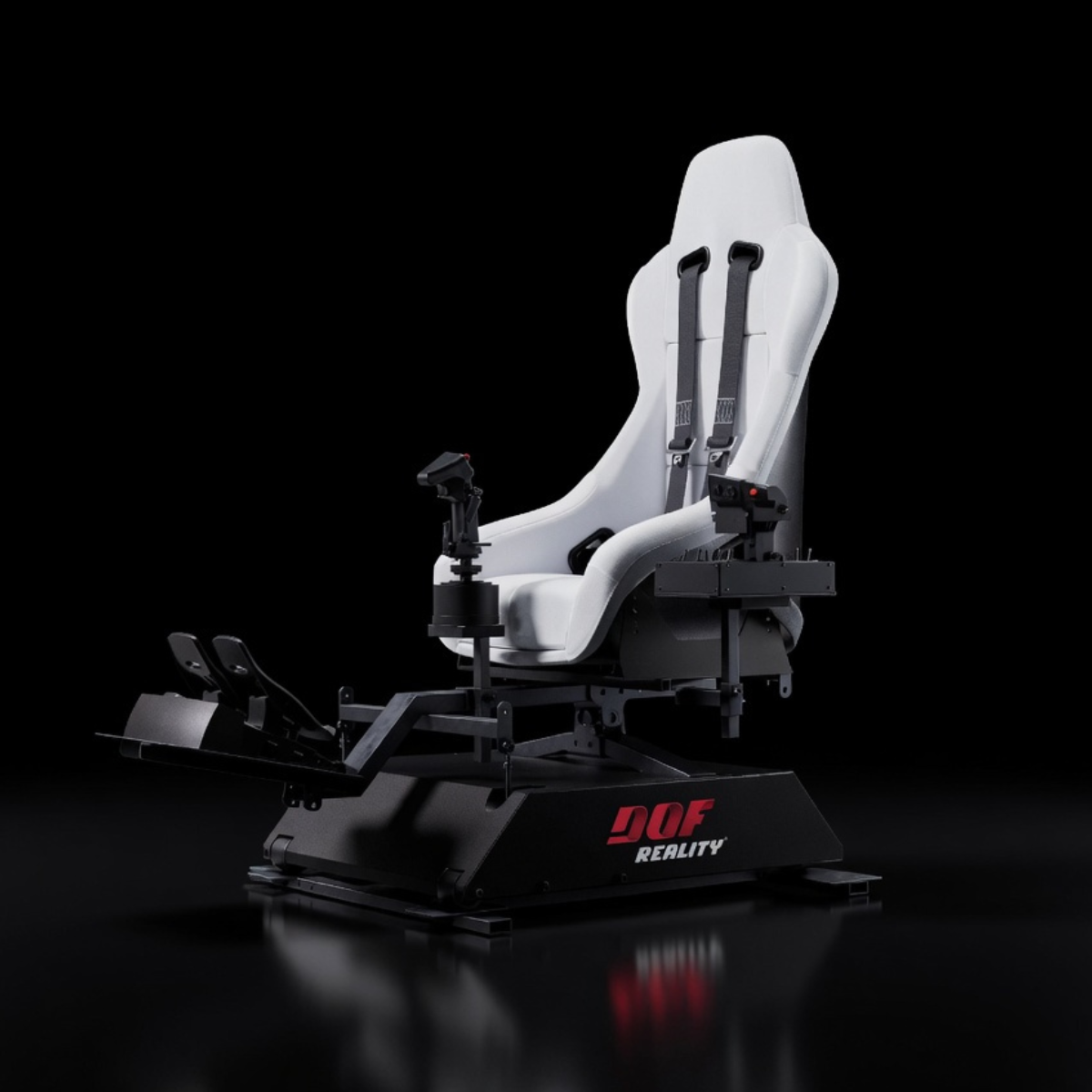

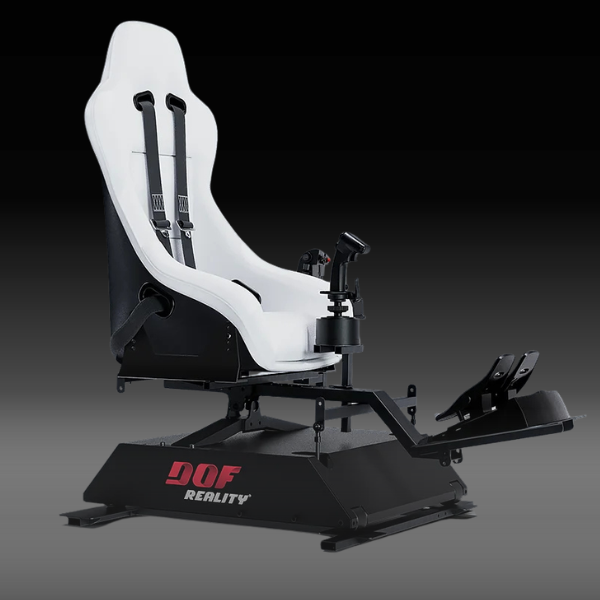

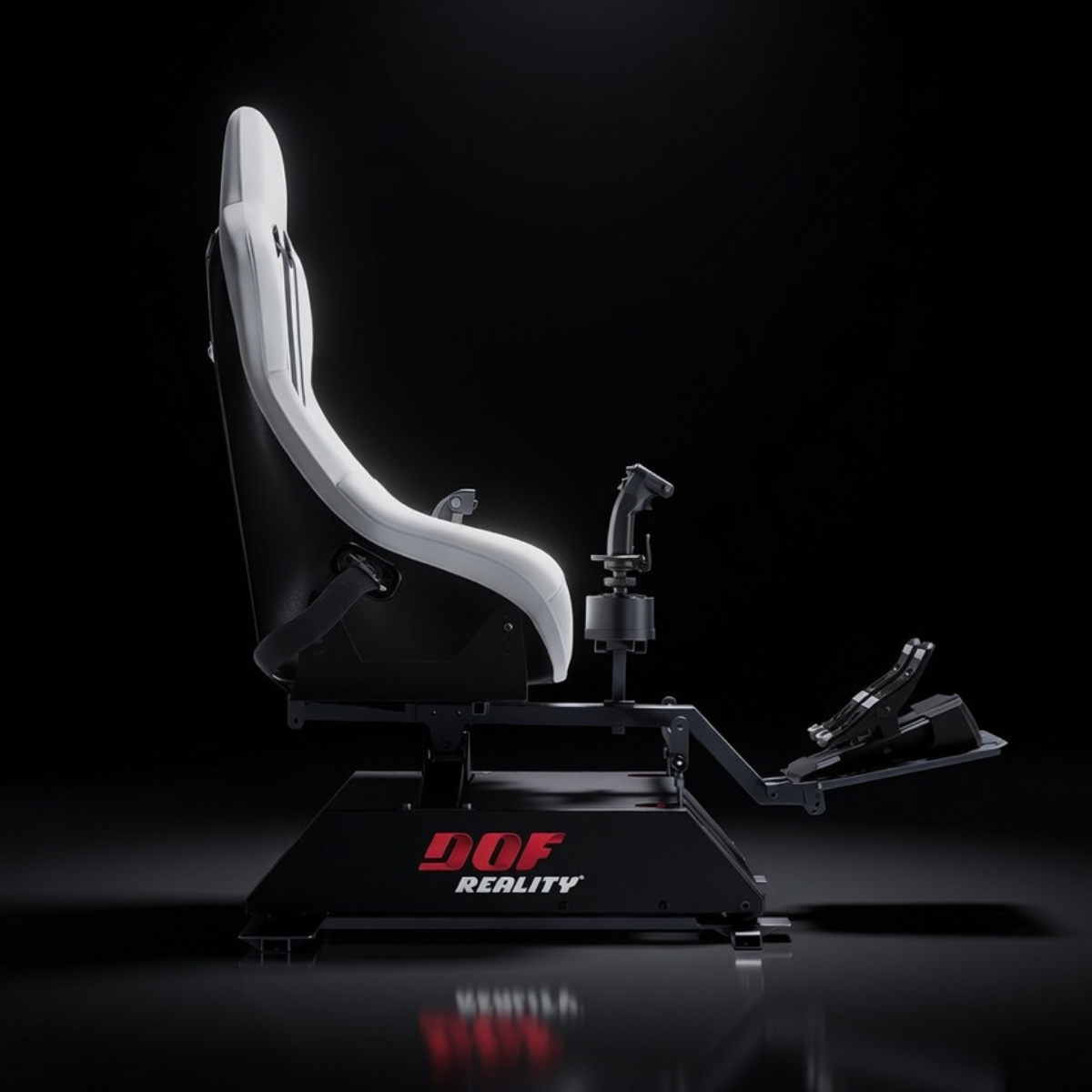

DOF Reality HERO 3-Axis Helicopter Motion Simulator Platform - H3

DOF Reality HERO 3-Axis Helicopter Motion Simulator Platform - H3 - Image 4

DOF Reality HERO 3-Axis Helicopter Motion Simulator Platform - H3 - Image 5

DOF Reality HERO 3-Axis Helicopter Motion Simulator Platform – H3

Name: DOF Reality HERO 3-Axis Helicopter Motion Simulator Platform - H3 - towertotower.co.uk
SKU: DOF-H3rH-HERO
Price: 1719.95 GBP
Availability: InStock

Original price was: £3,439.90.Current price is: £1,719.95.

Add to compare

Add to wishlist

SKU: DOF-H3rH-HERO Tags: 3-Axis Helicopter Simulators, Helicopter Motion Simulators, Motion Simulator Platforms

Description

The DOF Reality HERO H3 is a high-performance 3-axis helicopter motion simulator platform built for serious aviation enthusiasts, flight schools, and professionals. It is designed specifically to replicate the nuanced dynamics of helicopter flight with unmatched realism, responsiveness, and immersion.

Featuring three degrees of freedom — pitch, roll, and yaw — the HERO H3 captures every subtle movement, from hover drift and coordinated turns to descent and tail rotor feedback. Equipped with precision gearboxes on each motor, it delivers extra-smooth, slow-motion accuracy ideal for the delicate movements required in helicopter simulation.

In our full-rig motion design, the entire cockpit — cyclic, collective, throttle, pedals, joystick, and monitor — moves with the seat, enabling authentic g-force replication through body pressure points. Combined with Sim Racing Studio software, the system translates telemetry data into vivid motion cues like turbulence, vibration, rotor torque, and collision impacts.

Whether you’re simulating search-and-rescue flights, training for real-world flight, or enjoying immersive heli experiences at home, the HERO H3 is your all-in-one, professional-grade helicopter simulator platform — backed by global support and a robust warranty.

Why It Stands Out

Helicopter-Optimized 3-Axis Motion

Pitch + Roll + Yaw with precision gearboxes deliver smooth, accurate hover drift, yaw control, cyclic adjustments, tail rotor feedback, and coordinated turns.

Full-Rig Cockpit Movement

The entire cockpit — cyclic, collective, throttle, pedals, joystick, monitor, and seat — moves together for cohesive, in-cabin g-force feedback through body pressure.

Ultra-Smooth Gearbox Precision

Extra-smooth, low-speed gearing excels at delicate helicopter maneuvers while still providing crisp response for fixed-wing and basic racing use.

SRS Telemetry Integration

Sim Racing Studio converts real-time helicopter data into vivid cues: rotor torque, turbulence, vibrations, ground effect, and landing impacts.

Professional & Upgradeable

Robust build and versatile design make it excellent for training and home use, with an easy upgrade path to the full 6DOF H6.

What’s Included

Ready-to-Play Package

Rigid metal rig for normal & F1 pose
Mounts for seat or sliding rails
Integrated power drive motors with SFU gearboxes
100-240V control unit with USB
SimRacingStudio license
Quick assembly tools
1-year full warranty

Note

Plug-and-play motion platform only. Customer provides own seat, VR headset, and controllers (cyclic, collective, pedals, yoke, throttle, joystick, etc.). Supports all major brands and types.

Specifications

Degrees of Freedom	3 DOF (Pitch + Roll + Yaw/Rear Traction)
Full Platform Motion	Yes
Range of Motion	20°
Speed	50 cm/s (86°/s)
Torque	25 N/m
Acceleration	0.7G T / 0.5G L
Power Consumption	750 Watt (peak)
Box Weight (Size)	1) 28kg (90 x 33 x 20cm) 2) 29.97kg (60 x 40 x 30cm)
Floor Footprint	3×5 ft, 2 ft H (100×150 cm, 60 cm H)
Material	Commercial grade metal profiles
Supported Pilot Weight	330 lbs / 150 kg
Warranty	Full 1 year (extensions available)
Upgradable	Compatible with H6 upgrade

Frequently Asked Questions

What makes the DOF Reality HERO H3 better for helicopter simulation than typical racing motion platforms?

The HERO H3 adds a third axis (yaw) and uses a full-rig motion design, so your cockpit moves as one unit. That combination helps recreate helicopter-specific cues like hover drift, tail rotor / yaw corrections, and subtle attitude changes that racing-first platforms often struggle to reproduce naturally.

What parts of my setup move on the HERO H3?

The HERO H3 is a full-rig motion system. It can move your seat and cockpit components together — typically including your monitor, yoke/joystick, pedals, and mounted controls — so motion cues feel cohesive and “in-cabin” rather than isolated.

Which sims and games are compatible with the HERO H3?

Motion is driven through Sim Racing Studio (SRS), which supports many popular PC-based racing and flight titles via telemetry. Compatibility can vary by game and is updated over time, so if you tell us your main sim titles, we can help confirm the best path for your setup.

Do I need a PC, or can I use PlayStation / Xbox?

The HERO H3 is PC-focused out of the box because SRS runs on Windows for most setups. For console motion on supported titles, the optional MagicBox for PS/XBOX motion may be used. MagicBox handles motion control, while your peripherals (wheel, pedals, etc.) still connect to the console normally.

Is the HERO H3 suitable for flight schools or commercial training centers?

Yes — many customers choose the HERO H3 for serious training and demo environments because it offers 3-axis motion and a robust, upgradeable platform. For regulated training programs, always confirm any local certification requirements for your use case.

How much space do I need for the HERO H3?

Plan for the platform footprint plus clearance for safe entry/exit, seat travel, and mounting. A good rule is to allow extra space around the rig for motion travel, cable routing, and your monitor/controls. If you share your room dimensions and your cockpit layout, we can help sanity-check it.

Can I use the HERO H3 for fixed-wing flight and racing too?

Absolutely. While the HERO H3 shines for helicopter cues, it also works well for fixed-wing flight and racing with the right SRS profiles and mounted controls — making it a flexible, multi-sim platform.

What warranty and support are included?

The platform includes a manufacturer warranty, with optional extended warranty coverage. DOF Reality provides global support, and AlphaCaveHQ can help coordinate troubleshooting, replacements, or upgrade questions if you need assistance.

Shipping & Returns

Shipping Policy

We offer free shipping on all DOF Reality motion simulator platforms and accessories to the lower 48 contiguous United States. Trusted carriers like FedEx or DHL handle fast, insured delivery (typically in two large boxes for the platform, plus separate packaging for extras).

Shipping Timeline

Orders ship within 5-10 business days after payment clearance. Total delivery time is usually 3-4 weeks from order date. Tracking information is provided by email.

International Buyers

Platforms ship from Europe. International buyers may be responsible for customs duties, tariffs, taxes, or brokerage fees (not included in pricing). Use HS code 9504 50 00 00 for estimates.

Returns & Refunds

Accepted only for verified manufacturing defects that cannot be resolved through troubleshooting or parts replacement. No returns for change of mind due to size and weight. Approved returns require customer-paid shipping; refunds issued within 20 business days after inspection.

Cancellations

Possible within 14 days for non-custom items (subject to approval). No cancellations on custom builds or once shipment has started.

Warranty

Full 1-year manufacturer warranty covers design, material, or performance defects under normal use. Does not cover normal wear, misuse, or unauthorized repairs. Contact support for troubleshooting or claims.

Need Assistance?

Email support@alphacavehq.com — we’re here to make your experience seamless.

Product Manuals

Assembly Instructions & Manuals

The official DOF Reality guide includes step-by-step assembly for the 6 DOF platform, software setup, tuning, VR motion compensation, troubleshooting, and technical specifications.

DOF Reality HERO H3 3-axis helicopter motion simulator platform

Official Assembly Video: Watch the full tutorial for visual guidance on assembling your H3 platform.

Download Full Official Manual (PDF)
